TOPPING - DX7 Pro (Demo Unit)
Flagship Desktop DAC & AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
₹ 3,615 per month with Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 9,998
₹ 9,998
₹ 0
6 Months
(Low Cost EMI)
₹ 9,998
₹ 5,219
₹ 1,340
9 Months
(Low Cost EMI)
₹ 9,998
₹ 3,615
₹ 2,599
₹ 6,665 per month with axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 13,330
₹ 0
6 Months
No Cost EMI
₹ 6,665
₹ 0
₹ 13,330 per month with Bajaj Finserv
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 13,330
₹ 0
₹ 13,330 per month with Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 13,330
₹ 0
EMI Options through Other Credit Cards
American Express
3
14%
₹ 13,642
₹ 937
6
14%
₹ 6,940
₹ 1,649
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
18
14%
₹ 2,476
₹ 4,578
24
14%
₹ 1,920
₹ 6,091
Axis Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
Bank of Baroda
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
13%
₹ 4,687
₹ 2,197
12
13%
₹ 3,572
₹ 2,872
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
Citi Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
15%
₹ 4,726
₹ 2,541
12
15%
₹ 3,609
₹ 3,323
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
HDFC Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
15%
₹ 4,726
₹ 2,541
12
15%
₹ 3,609
₹ 3,323
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
HSBC Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
13.50%
₹ 4,697
₹ 2,283
12
13.50%
₹ 3,581
₹ 2,984
18
13.50%
₹ 2,467
₹ 4,409
ICICI Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
13.99%
₹ 4,706
₹ 2,367
12
13.99%
₹ 3,590
₹ 3,095
18
14.99%
₹ 2,495
₹ 4,912
24
14.99%
₹ 1,939
₹ 6,541
INDUSIND Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
13%
₹ 4,687
₹ 2,197
12
12%
₹ 3,553
₹ 2,647
18
12%
₹ 2,439
₹ 3,906
24
12%
₹ 1,882
₹ 5,189
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
RBL Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
15%
₹ 4,726
₹ 2,541
12
15%
₹ 3,609
₹ 3,323
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
SBI Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
Standard Chartered Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
YES Bank
3
No Cost EMI
₹ 13,330
₹ 0
6
No Cost EMI
₹ 6,665
₹ 0
9
14%
₹ 4,707
₹ 2,369
12
14%
₹ 3,591
₹ 3,097
18
15%
₹ 2,495
₹ 4,916
24
15%
₹ 1,939
₹ 6,546
Payment Offers
Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 9,998
₹ 9,998
₹ 0
6 Months
(Low Cost EMI)
₹ 9,998
₹ 5,219
₹ 1,340
9 Months
(Low Cost EMI)
₹ 9,998
₹ 3,615
₹ 2,599
Axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 13,330
₹ 0
6 Months
No Cost EMI
₹ 6,665
₹ 0
Bajaj Finance
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 13,330
₹ 0
Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 13,330
₹ 0
MobiKwik
Cashback Offer
- Select Cashfree at Checkout to transact through Mobikwik
- Get Additional Cashback upto Rs. 500/- on transaction via MobiKwik wallet
- Use Code :- MBK500 on MobiKwik Payment page to avail the additional cashback.
- Transaction to be done through MobiKwik wallet only
- Offer can be availed on minimum transaction of Rs. 1999/-
- Offer can be availed once per user during the campaign
- Offer valid till 30th September '23
- T&C Applied
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE

Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for
Indoor Use
Bluetooth with
LDAC, aptX LL, aptX HD & AAC
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
4.4mm & 4-Pin XLR
Balanced Output
Connect With IIS, AES
USB, Optical & Coaxial
Upto 1700mW X 2 @ 32 Ω
Power Output
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
DEMO UNIT
Headphone Zone Certified Demo Headphones
Our careful selection of demo headphones gives you the experience of pre-burned in headphones - at drop dead prices. We do this sale every year to clear up our existing demos and to make way for new units instead. These demo headphones have been used at our Experience Studio in Mumbai. The pictures above depict the condition of the product and also indicate the accessories available with the headphone. For any specific questions about the condition please get in touch with us! While the product itself is fully tested by our Headphone Gurus and the outer packaging may have suffered some damage.
Get The Best Deal
You may or may not get the original packaging or some accessories may be missing & because of the fact that they've been extensively used as a demo at the Experience Studio, we give a good discount compared to a new gear.
Unchanged Policies
Received a defective Demo unit? Return it under our 7 Day Replacement Guarantee Policy.
P.S. If you do not like your gear, unfortunately we will not be able to accept the return.
Pre-Burned In
Demo headphones save you the time of burning in new headphones. Typically, brand new headphones take up to weeks to fully break in and sound as good as they should. With demo headphones, you get to enjoy the best sound out of the box.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Demo Units or any products.
Consider It Vintage
Vintage products have a certain charm that cannot be put into words. Think of old, discontinued demo headphones as vintage. They have a story; they have, how-to-say, character.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.

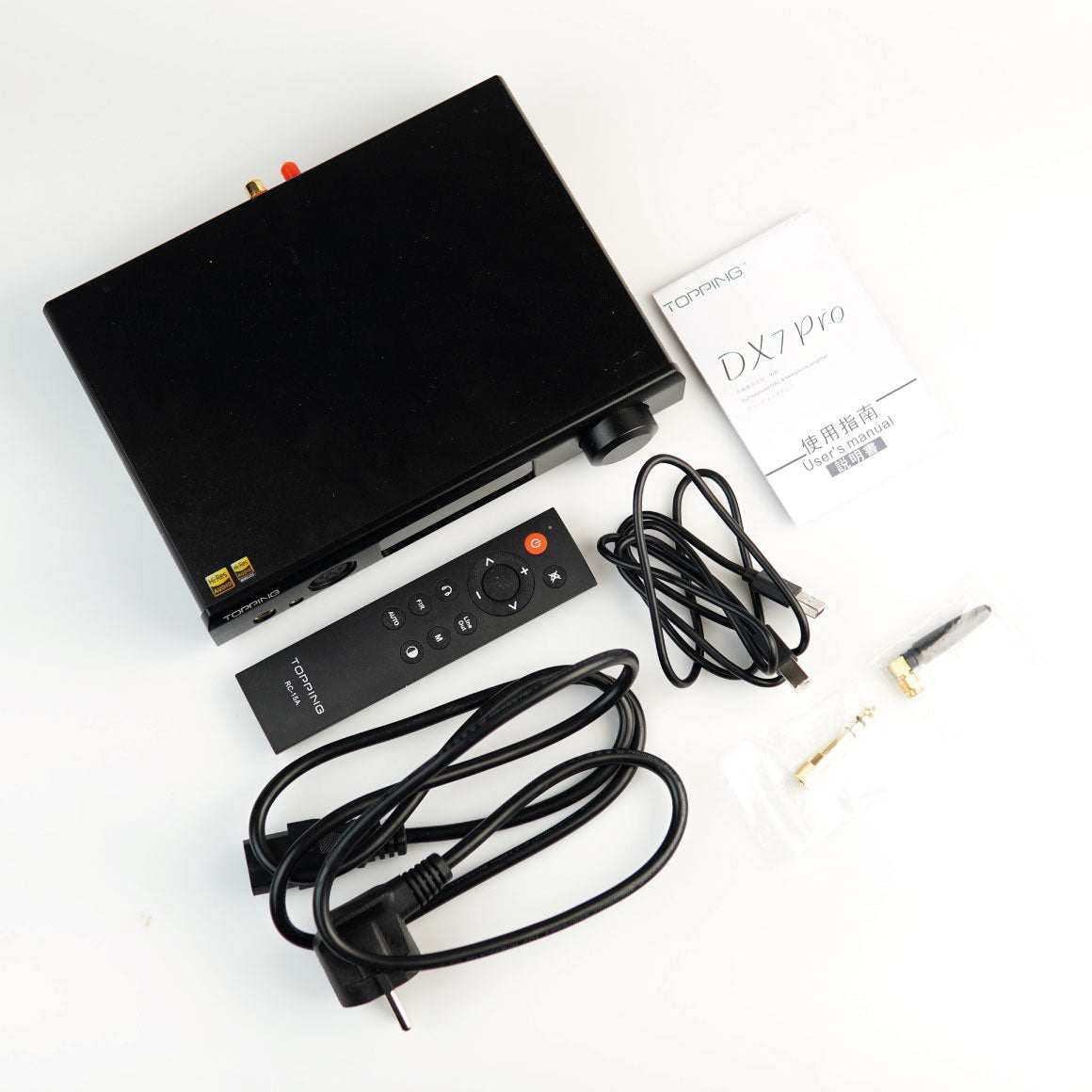

IN THE BOX
BOX CONTENTS | 1. TOPPING DX7 Pro |
2. 1 X 6.35 mm To 3.5 mm Connector | |
3. 1 X Bluetooth Antenna | |
4. 1 X Remote Control | |
5. 1 X USB Cable | |
6. 1 X AC Cable | |
7. User Manual |
WARRANTY | NA |
Description
LISTEN TO EACH NOTE WITH UTMOST CLARITY AND ACCURACY
TOPPING DX7 Pro functions as a desktop DAC which allows you to listen to each note of the music accurately. DX7 Pro is powered by ESS DAC ES9038PRO chip and is backed by extensive TOPPING design and regulation. The distortion levels are at <0.00010%, DNR and SNR at <126dB.


REFINED HD WIRELESS AUDIO WITH BLUETOOTH 5.0 AND LDAC PROTOCOL
DX7 Pro ensures that you do not miss on high-quality sound even while using it wirelessly, TOPPING DX7 features CSR8675 chipset which supports Bluetooth 5.0, LDAC, AAC, SBC, APTX, APTX LL and APTX HD protocol. LDAC allows DX7 pro to offer 24bit 96 KHz HD transmission and if you do not need Bluetooth, you can always turn it off from the menu.

ADVANCED DECODING ALONG WITH PCM AND DSD SUPPORT
Experience superior decoding capacity on USB with the TOPPING DX7 Pro, thanks to its XMOS XU208 and custom Thesycon driver with 7+ win. DX7 Pro also supports PCM up to 32bit 768KHz and DSD to DSD512 native.

WITH IIS INPUT FOR HIGH-END PERFORMANCE AND USABILITY
Take the decoding process a notch higher using the HDMI cable directly which offers IIS signal to DX7 pro's ES9038PRO. The IIS input supports up to PCM32bit768kHz & DSD1024 native and also provides a range of settings including phase settings, DSD channel settings, and DSD indicator pin selection settings.
NOTE: This function uses HDMI interface transmit IIS signal and therefore it cannot be used with standard HDMI interface used in PC, TV and the Set-top box.

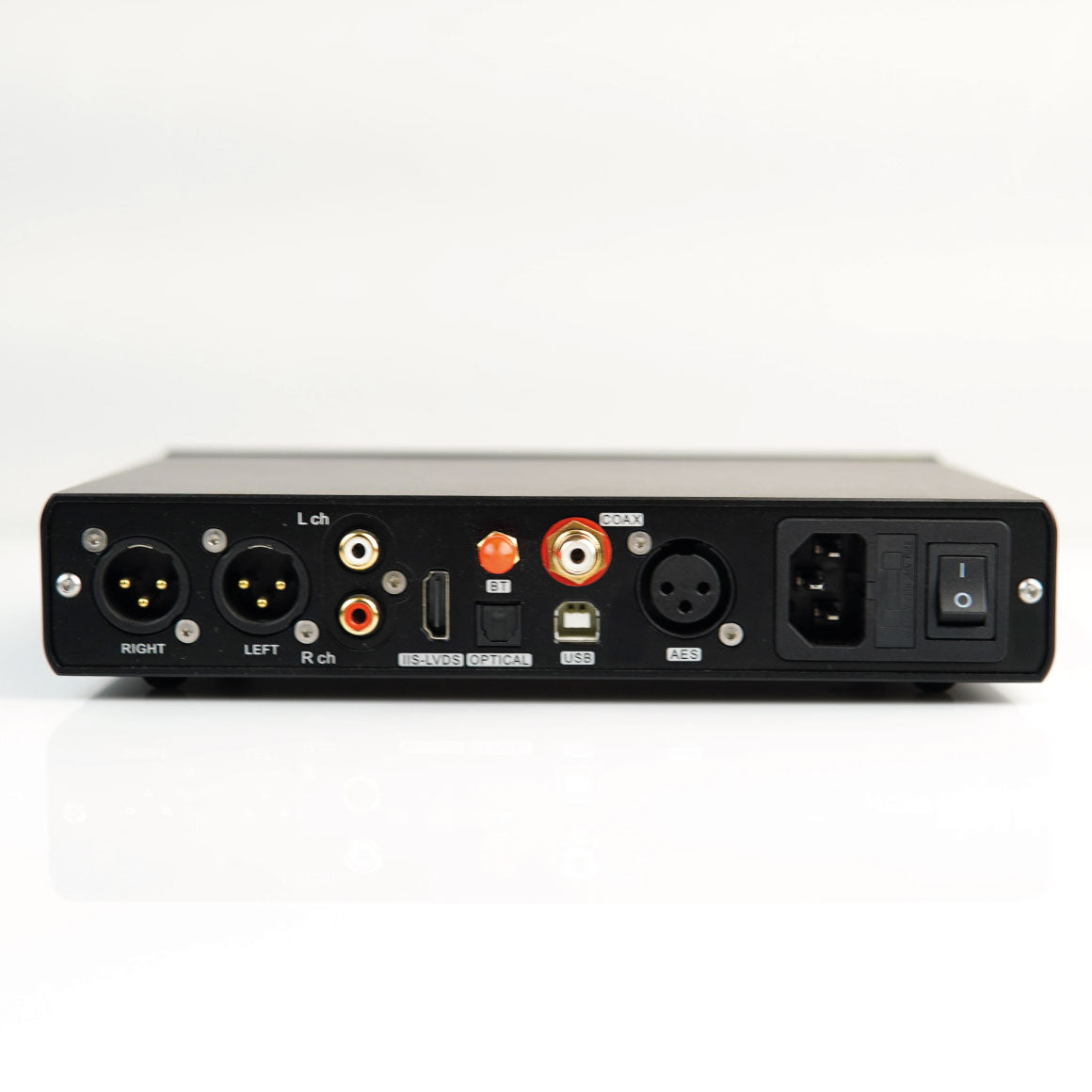

A WIDE RANGE OF DIGITAL INPUTS FOR CONVENIENT CONNECTIVITY
Not just the IIIS input but the TOPPING DX7 Pro offers a range of digital inputs like OPT, COAX and AES. Each of these inputs supports up to 24bit192kHz giving you the convenience of connecting DX7 Pro with a host of devices for solid performance.

FLAGSHIP DAC WITH 3 x ACCUSILICON, ESS ES9039PRO & ES9311 CHIP
TOPPING DX7 Pro employs ESS ES9039PRO with 32-bit hyper stream architecture for ultra-high audio performance. DX7 Pro also uses super low noise linear power chip ES9311 and 3 x ACCUSILICON which supplies best quality power to DX7 Pro.

COMPATIBLE WITH 4.4MM, XLR BALANCED CABLES AND 6.35MM SINGLE-ENDED
Make the most of the host of output options like the single-ended 6.35 mm, 4 pin XLR balanced cable and 4.4mm balanced cables. TOPPING DX7 Pro is designed to cater to the needs of different users with two integrated gain options and is compatible with XLR balanced and RCA single-ended output.

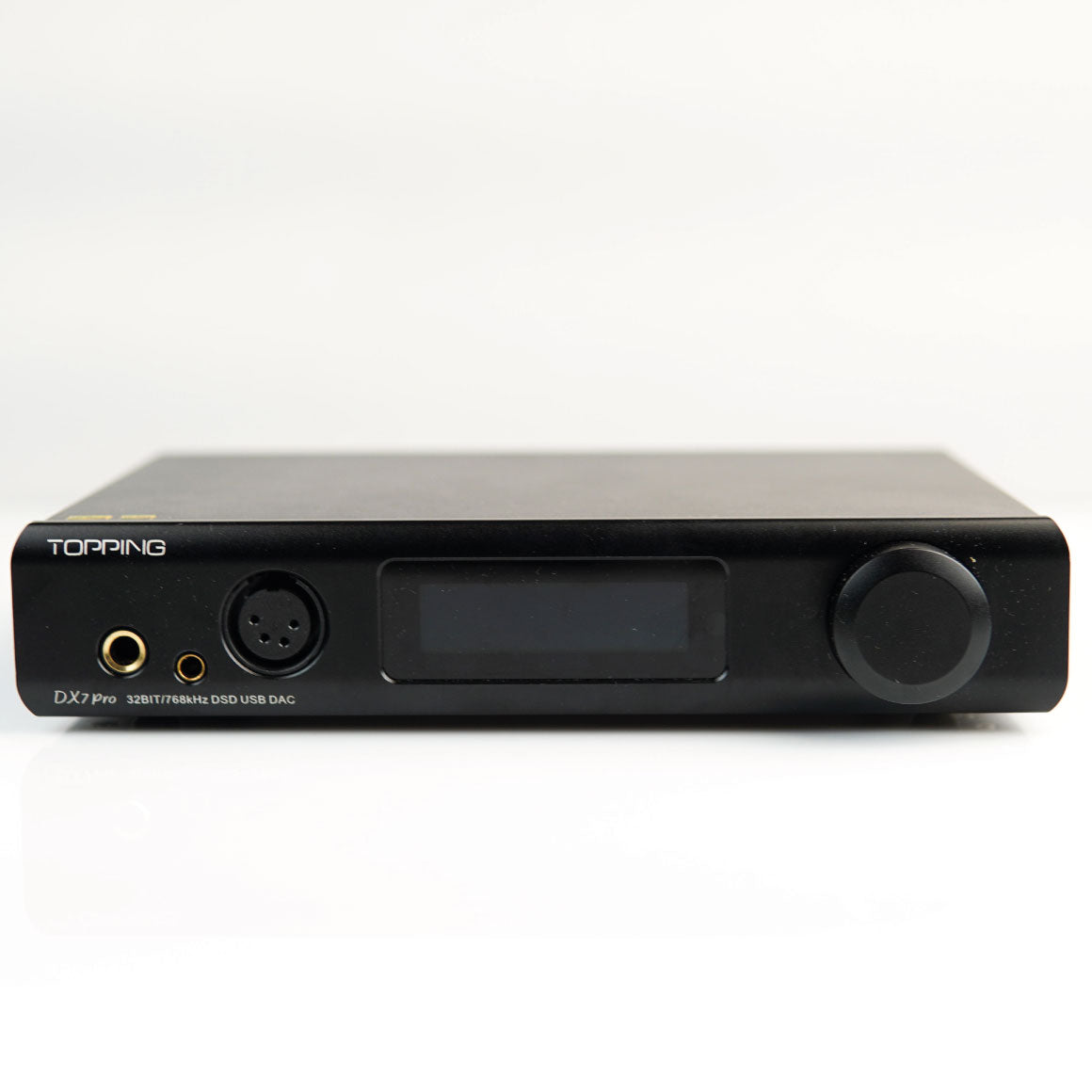

WITH PREMIUM ALUMINIUM CASE AND CONVENIENT CONTROLS
The TOPPING DX7 pro shell parts are made of aluminium ingot after it undergoes a series of severe developing and testing processes including CNC precision processing, sandblasting, anodic oxidation and laser carving. DX7 Pro has an OLED screen displaying status and other information which can be set using the remote control.



DX7 PRO IS VERSATILE AND FUNCTIONS AS:
- Bluetooth Headphone Amp & Bluetooth DAC: Connect it to your smartphone, tablet or pair it with amplifiers, active speakers and headphones to never miss on high-quality wireless audio. You can connect devices with OTG external sound cards using the USB input of the DX7 pro.
- DAC+Pre Amp: You can use the TOPPING DX7 Pro through its 'Pre Amp' output mode allowing you to connect power amp, active speakers while managing its volume. DX7 Pro uses digital volume adjustment while the right and left channels are managed digitally to avoid any kind of imbalance.
- Standalone DAC: You can easily use the TOPPING DX7 pro as a DAC with the DAC output mode. To offer the best of performance and seamless integration with devices, this mode will turn off the headphone amp which will not allow you to control volume.



SPECS
MEASUREMENT | 22.2cm X 17.8cm X 4.5cm |
WEIGHT | 1.4 Kg |
POWER INPUT | AC110V/AC220V 50Hz/60Hz* |
SIGNAL INPUT | USB/ BT/ OPT/ IIS/ AES/ COAX |
LINE OUT OUTPUT | XLR/RCA |
HEADPHONE AMP OUTPUT | 6.35 mm/ XLR Balanced output/ 4.4 mm Balanced output |
USB IN | 44.1-768 KHz/16-32 Bit, DSD64-DSD256 (DoP), DSD64-DSD512 (Native) |
OPT/AES/COAX | 44.1-192 KHz/16-24 Bit, DSD64 (DoP) |
IIS IN | 44.1-768kHz/16-32 Bit, DSD64-DSD1024 |
BLUETOOTH IN | AAC/ SBC/ APTX/ APTX LL/ APTX HD/ LDAC |
THD+N @ A-WEIGHTING | Line Out RCA : <0.00014% At 1 KHz <0.00030% At 20-20 KHz Line Out XLR : <0.00010% At 1 KHz <0.00020% At 20-20 KHz |
SNR @ A-WEIGHTING | Line Out RCA : 122 dB At 1 KHz Line Out XLR : 126 dB At 1 KHz |
DYNAMIC RANGE @ A-WEIGHTING | Line Out RCA : 122 dB At 1 KHz Line Out XLR : 126 dB At 1 KHz |
FREQUENCY RESPONSE | Line Out RCA : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) Line Out XLR : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) |
OUTPUT VOLTAGE | Line Out RCA : 2Vrms @ 0dBFS Line Out XLR : 4Vrms @ 0dBFS |
NOISE @ A-WEIGHTING | Line Out RCA : < 1.7uVrms Line Out XLR : < 2.6uVrms |
CROSSTALK | Line Out RCA : -120 dB @ 1 kHz Line Out XLR : -140dB @ 1 KHz |
THD+N @ A-WEIGHTING | Single Output : <0.0004% @1 KHz, Output = 100 MW (32 Ohms) <0.0005% @20-20 KHz, Output = 100 MW (32 Ohms) <0.0003% @1 KHz, Output = 50 MW (300 Ohms) <0.0004% @20-20 KHz , Output = 50 MW (300 Ohms) Balanced Output : <0.0004% @1 KHz, Output = 300 MW (32 Ohms) <0.0005% @20-20 KHz, Output = 300 MW (32 Ohms) <0.0003% @1 KHz, Output = 200 MW (300 Ohms) <0.0004% @20-20 KHz , Output = 200 MW (300 Ohms) |
SNR @ A-WEIGHTING | Single Output : 120 dB @1 KHz Balanced Output : 123 dB @1 KHz |
DYNAMIC RANGE @ A-WEIGHTING | Single Output : 120 dB @1 KHz Balanced Output : 123 dB @1 KHz |
FREQUENCY RESPONSE | Single Output : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) Balanced Output : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) |
OUTPUT VOLTAGE | Single Output : 8.4Vpp @ G=L 16.8Vpp @ G=H Balanced Output : 16.8Vpp @ G=L 33.6Vpp @ G=H |
NOISE @ A-WEIGHTING | Single Output : <3.0uVrms @ G=L <5.0uVrms @ G=H Balanced Output : <4.0uVrms @ G=L <7.0uVrms @ G=H |
CROSSTALK | Single Output : -80dB @ 1 kHz Balanced Output : -118dB @ 1 KHz |
OUTPUT IMPEDANCE | Single Output : 4.7 Ohms Balanced Output : 9.4 Ohms |
OUTPUT POWER | Single Output : 840 mW X 2 @32 Ohms, THD+N <1% 115mW X 2 @300 Ohms, THD+N <1% Balanced Output : 1700 mw X 2 @32 Ohms, THD+N <1% 450 mW X 2 @300 Ohms, THD+N <1% |
ADAPTOR IMPEDANCE | Single Output : 16-300 Ohms Balanced Output : 16-600 Ohms |
BOX CONTENTS | 1. TOPPING DX7 Pro |
2. 1 X 6.35 mm To 3.5 mm Connector | |
3. 1 X Bluetooth Antenna | |
4. 1 X Remote Control | |
5. 1 X USB Cable | |
6. 1 X AC Cable | |
7. User Manual |
GENERIC NAME | Headphone Amplifier |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
Headphone Zone Certified Demo Headphones
Our careful selection of demo headphones gives you the experience of pre-burned in headphones - at drop dead prices. We do this sale every year to clear up our existing demos and to make way for new units instead. These demo headphones have been used at our Experience Studio in Mumbai. The pictures above depict the condition of the product and also indicate the accessories available with the headphone. For any specific questions about the condition please get in touch with us! While the product itself is fully tested by our Headphone Gurus and the outer packaging may have suffered some damage.
Get The Best Deal
You may or may not get the original packaging or some accessories may be missing & because of the fact that they've been extensively used as a demo at the Experience Studio, we give a good discount compared to a new gear.
Unchanged Policies
Received a defective Demo unit? Return it under our 7 Day Replacement Guarantee Policy.
P.S. If you do not like your gear, unfortunately we will not be able to accept the return.
Pre-Burned In
Demo headphones save you the time of burning in new headphones. Typically, brand new headphones take up to weeks to fully break in and sound as good as they should. With demo headphones, you get to enjoy the best sound out of the box.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Demo Units or any products.
Consider It Vintage
Vintage products have a certain charm that cannot be put into words. Think of old, discontinued demo headphones as vintage. They have a story; they have, how-to-say, character.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
BOX CONTENTS | 1. TOPPING DX7 Pro |
2. 1 X 6.35 mm To 3.5 mm Connector | |
3. 1 X Bluetooth Antenna | |
4. 1 X Remote Control | |
5. 1 X USB Cable | |
6. 1 X AC Cable | |
7. User Manual |
WARRANTY | NA |
LISTEN TO EACH NOTE WITH UTMOST CLARITY AND ACCURACY
TOPPING DX7 Pro functions as a desktop DAC which allows you to listen to each note of the music accurately. DX7 Pro is powered by ESS DAC ES9038PRO chip and is backed by extensive TOPPING design and regulation. The distortion levels are at <0.00010%, DNR and SNR at <126dB.


REFINED HD WIRELESS AUDIO WITH BLUETOOTH 5.0 AND LDAC PROTOCOL
DX7 Pro ensures that you do not miss on high-quality sound even while using it wirelessly, TOPPING DX7 features CSR8675 chipset which supports Bluetooth 5.0, LDAC, AAC, SBC, APTX, APTX LL and APTX HD protocol. LDAC allows DX7 pro to offer 24bit 96 KHz HD transmission and if you do not need Bluetooth, you can always turn it off from the menu.

ADVANCED DECODING ALONG WITH PCM AND DSD SUPPORT
Experience superior decoding capacity on USB with the TOPPING DX7 Pro, thanks to its XMOS XU208 and custom Thesycon driver with 7+ win. DX7 Pro also supports PCM up to 32bit 768KHz and DSD to DSD512 native.

WITH IIS INPUT FOR HIGH-END PERFORMANCE AND USABILITY
Take the decoding process a notch higher using the HDMI cable directly which offers IIS signal to DX7 pro's ES9038PRO. The IIS input supports up to PCM32bit768kHz & DSD1024 native and also provides a range of settings including phase settings, DSD channel settings, and DSD indicator pin selection settings.
NOTE: This function uses HDMI interface transmit IIS signal and therefore it cannot be used with standard HDMI interface used in PC, TV and the Set-top box.

A WIDE RANGE OF DIGITAL INPUTS FOR CONVENIENT CONNECTIVITY
Not just the IIIS input but the TOPPING DX7 Pro offers a range of digital inputs like OPT, COAX and AES. Each of these inputs supports up to 24bit192kHz giving you the convenience of connecting DX7 Pro with a host of devices for solid performance.

FLAGSHIP DAC WITH 3 x ACCUSILICON, ESS ES9039PRO & ES9311 CHIP
TOPPING DX7 Pro employs ESS ES9039PRO with 32-bit hyper stream architecture for ultra-high audio performance. DX7 Pro also uses super low noise linear power chip ES9311 and 3 x ACCUSILICON which supplies best quality power to DX7 Pro.

COMPATIBLE WITH 4.4MM, XLR BALANCED CABLES AND 6.35MM SINGLE-ENDED
Make the most of the host of output options like the single-ended 6.35 mm, 4 pin XLR balanced cable and 4.4mm balanced cables. TOPPING DX7 Pro is designed to cater to the needs of different users with two integrated gain options and is compatible with XLR balanced and RCA single-ended output.

WITH PREMIUM ALUMINIUM CASE AND CONVENIENT CONTROLS
The TOPPING DX7 pro shell parts are made of aluminium ingot after it undergoes a series of severe developing and testing processes including CNC precision processing, sandblasting, anodic oxidation and laser carving. DX7 Pro has an OLED screen displaying status and other information which can be set using the remote control.



DX7 PRO IS VERSATILE AND FUNCTIONS AS:
- Bluetooth Headphone Amp & Bluetooth DAC: Connect it to your smartphone, tablet or pair it with amplifiers, active speakers and headphones to never miss on high-quality wireless audio. You can connect devices with OTG external sound cards using the USB input of the DX7 pro.
- DAC+Pre Amp: You can use the TOPPING DX7 Pro through its 'Pre Amp' output mode allowing you to connect power amp, active speakers while managing its volume. DX7 Pro uses digital volume adjustment while the right and left channels are managed digitally to avoid any kind of imbalance.
- Standalone DAC: You can easily use the TOPPING DX7 pro as a DAC with the DAC output mode. To offer the best of performance and seamless integration with devices, this mode will turn off the headphone amp which will not allow you to control volume.



MEASUREMENT | 22.2cm X 17.8cm X 4.5cm |
WEIGHT | 1.4 Kg |
POWER INPUT | AC110V/AC220V 50Hz/60Hz* |
SIGNAL INPUT | USB/ BT/ OPT/ IIS/ AES/ COAX |
LINE OUT OUTPUT | XLR/RCA |
HEADPHONE AMP OUTPUT | 6.35 mm/ XLR Balanced output/ 4.4 mm Balanced output |
USB IN | 44.1-768 KHz/16-32 Bit, DSD64-DSD256 (DoP), DSD64-DSD512 (Native) |
OPT/AES/COAX | 44.1-192 KHz/16-24 Bit, DSD64 (DoP) |
IIS IN | 44.1-768kHz/16-32 Bit, DSD64-DSD1024 |
BLUETOOTH IN | AAC/ SBC/ APTX/ APTX LL/ APTX HD/ LDAC |
THD+N @ A-WEIGHTING | Line Out RCA : <0.00014% At 1 KHz <0.00030% At 20-20 KHz Line Out XLR : <0.00010% At 1 KHz <0.00020% At 20-20 KHz |
SNR @ A-WEIGHTING | Line Out RCA : 122 dB At 1 KHz Line Out XLR : 126 dB At 1 KHz |
DYNAMIC RANGE @ A-WEIGHTING | Line Out RCA : 122 dB At 1 KHz Line Out XLR : 126 dB At 1 KHz |
FREQUENCY RESPONSE | Line Out RCA : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) Line Out XLR : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) |
OUTPUT VOLTAGE | Line Out RCA : 2Vrms @ 0dBFS Line Out XLR : 4Vrms @ 0dBFS |
NOISE @ A-WEIGHTING | Line Out RCA : < 1.7uVrms Line Out XLR : < 2.6uVrms |
CROSSTALK | Line Out RCA : -120 dB @ 1 kHz Line Out XLR : -140dB @ 1 KHz |
THD+N @ A-WEIGHTING | Single Output : <0.0004% @1 KHz, Output = 100 MW (32 Ohms) <0.0005% @20-20 KHz, Output = 100 MW (32 Ohms) <0.0003% @1 KHz, Output = 50 MW (300 Ohms) <0.0004% @20-20 KHz , Output = 50 MW (300 Ohms) Balanced Output : <0.0004% @1 KHz, Output = 300 MW (32 Ohms) <0.0005% @20-20 KHz, Output = 300 MW (32 Ohms) <0.0003% @1 KHz, Output = 200 MW (300 Ohms) <0.0004% @20-20 KHz , Output = 200 MW (300 Ohms) |
SNR @ A-WEIGHTING | Single Output : 120 dB @1 KHz Balanced Output : 123 dB @1 KHz |
DYNAMIC RANGE @ A-WEIGHTING | Single Output : 120 dB @1 KHz Balanced Output : 123 dB @1 KHz |
FREQUENCY RESPONSE | Single Output : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) Balanced Output : 20 Hz-20 KHz (+/- 0.1 dB) 20 Hz-40 KHz (+/- 0.3 dB) |
OUTPUT VOLTAGE | Single Output : 8.4Vpp @ G=L 16.8Vpp @ G=H Balanced Output : 16.8Vpp @ G=L 33.6Vpp @ G=H |
NOISE @ A-WEIGHTING | Single Output : <3.0uVrms @ G=L <5.0uVrms @ G=H Balanced Output : <4.0uVrms @ G=L <7.0uVrms @ G=H |
CROSSTALK | Single Output : -80dB @ 1 kHz Balanced Output : -118dB @ 1 KHz |
OUTPUT IMPEDANCE | Single Output : 4.7 Ohms Balanced Output : 9.4 Ohms |
OUTPUT POWER | Single Output : 840 mW X 2 @32 Ohms, THD+N <1% 115mW X 2 @300 Ohms, THD+N <1% Balanced Output : 1700 mw X 2 @32 Ohms, THD+N <1% 450 mW X 2 @300 Ohms, THD+N <1% |
ADAPTOR IMPEDANCE | Single Output : 16-300 Ohms Balanced Output : 16-600 Ohms |
BOX CONTENTS | 1. TOPPING DX7 Pro |
2. 1 X 6.35 mm To 3.5 mm Connector | |
3. 1 X Bluetooth Antenna | |
4. 1 X Remote Control | |
5. 1 X USB Cable | |
6. 1 X AC Cable | |
7. User Manual |
GENERIC NAME | Headphone Amplifier |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |

Headfonia Recommended
Headfonia
Aug, 2020
"If you’re in the market for an excellent performing mid-fi DAC/AMP that will keep you happy for a very long time, the DX7 Pro is one for your shortlist."
Read More"It delivers a solid performance on all fronts. It an incredible all-in-one device packed with features that came as a bonus for a close to perfect audio performance. "
Read More"The DX7 Pro isn’t tiny, exactly, but it feels ideal for just about any desktop. It possesses a quality aesthetic, with tight tolerances and solid-to-the-touch build and weight."
Read More"Fully balanced headphone and line outputs, Great build quality and understated aesthetic, Neutral and transparent sound, Versatile connectivity options."
Read MoreThis product has no reviews yet.
