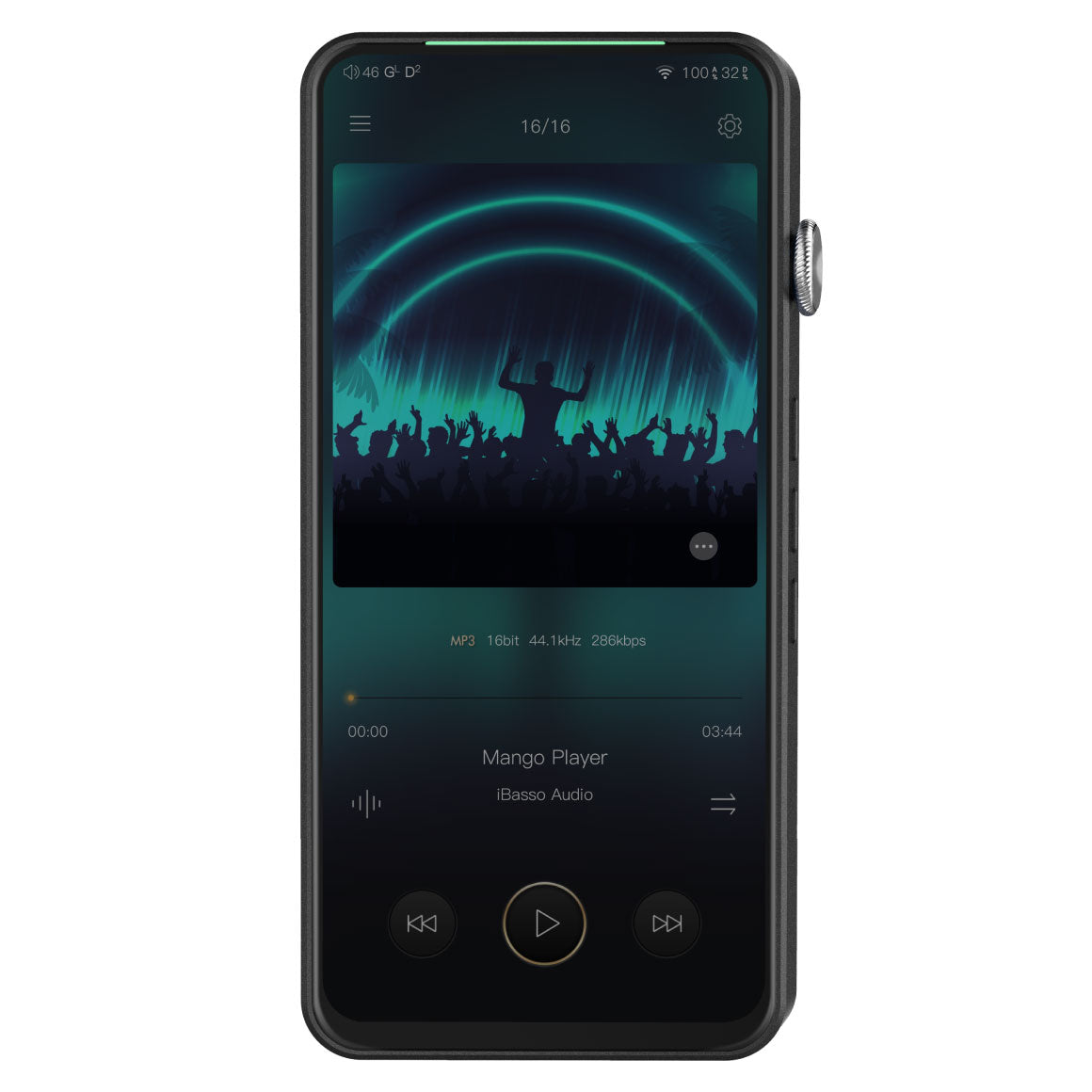

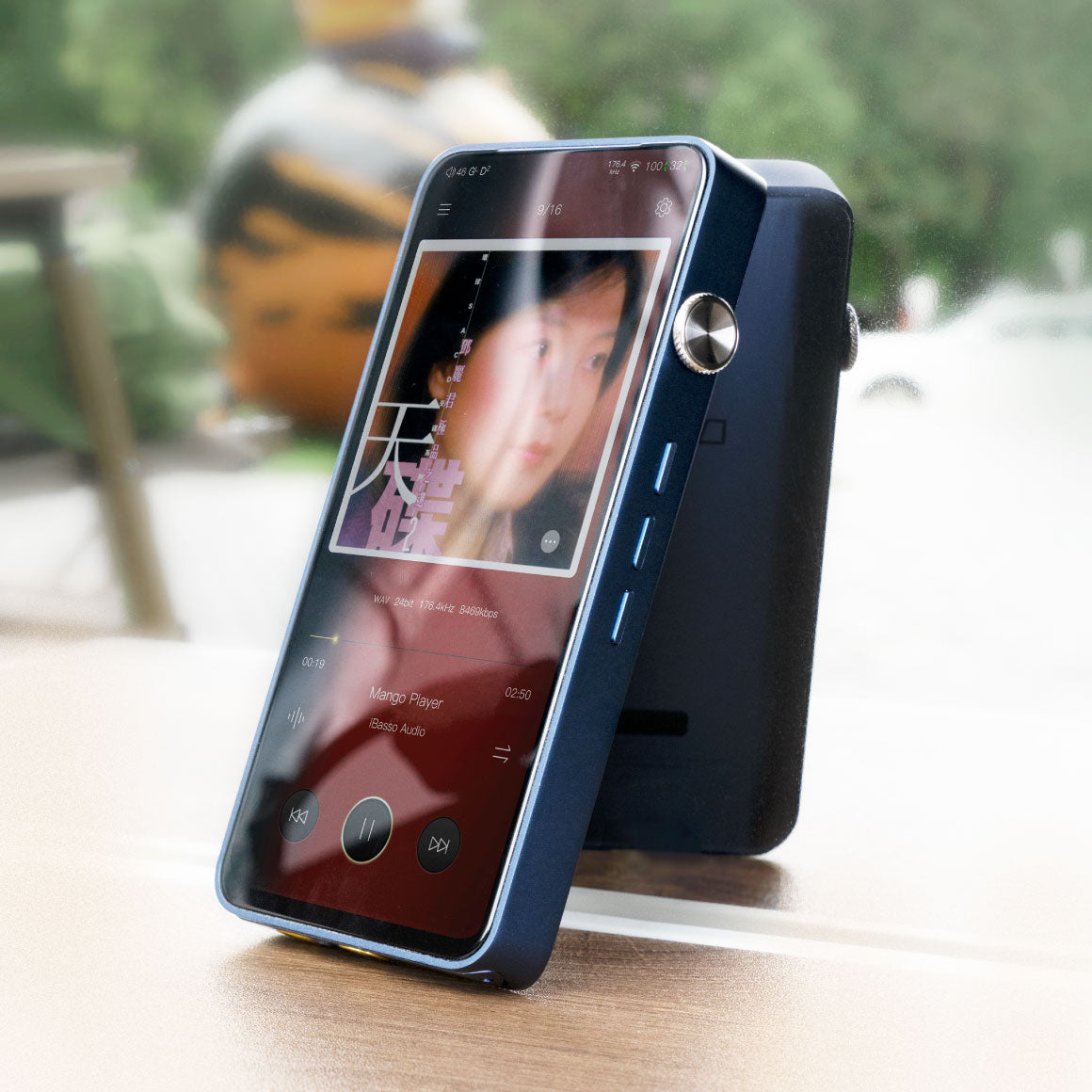

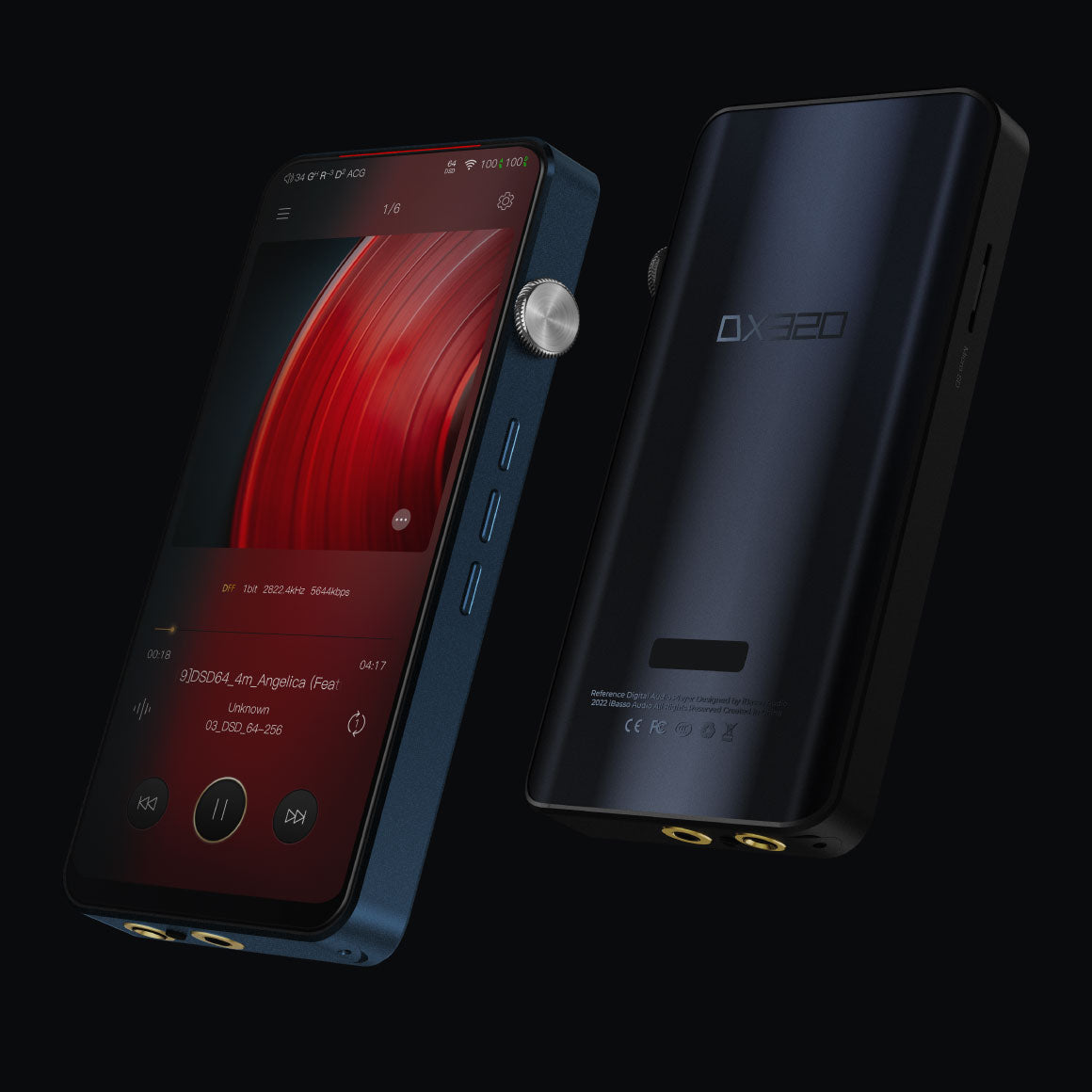

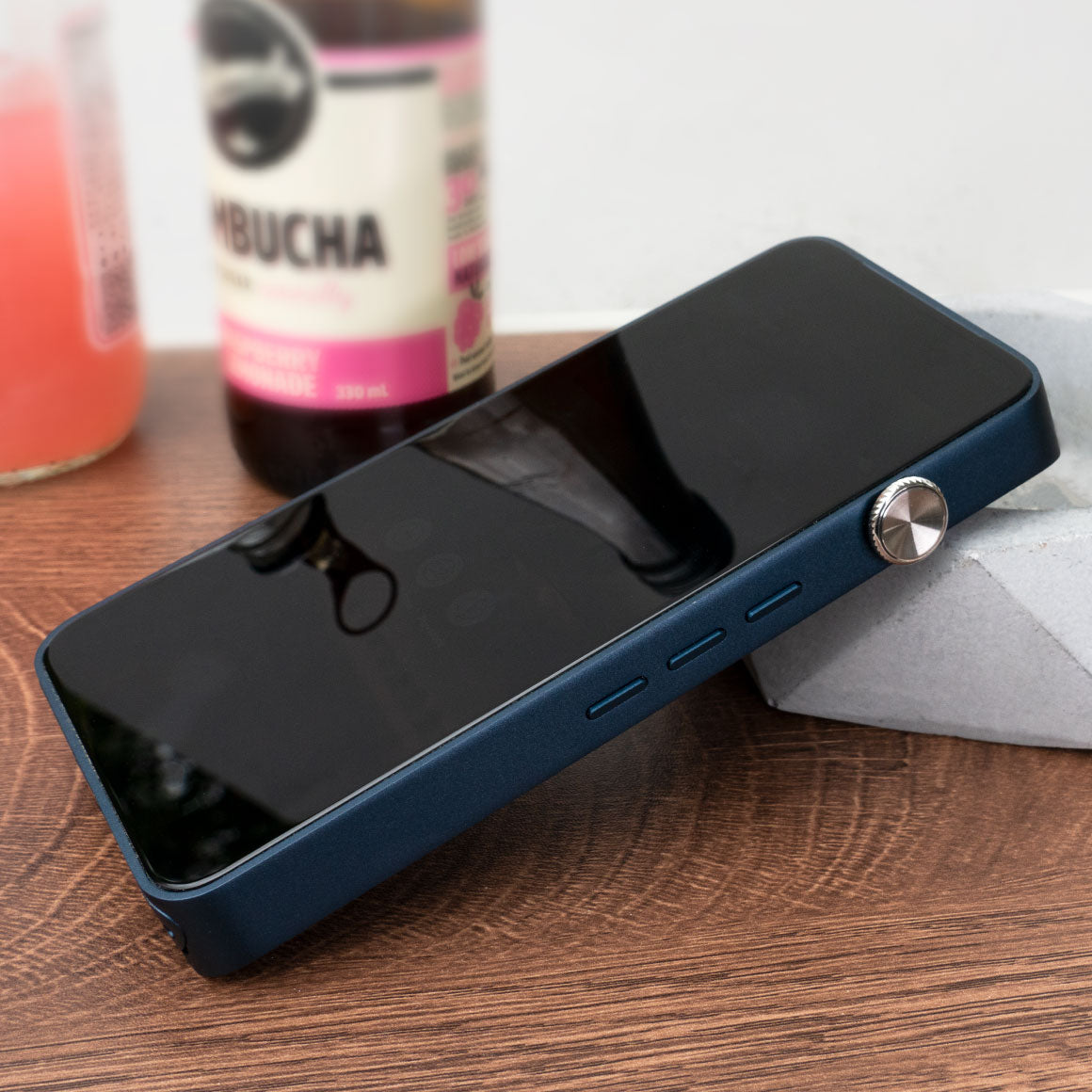

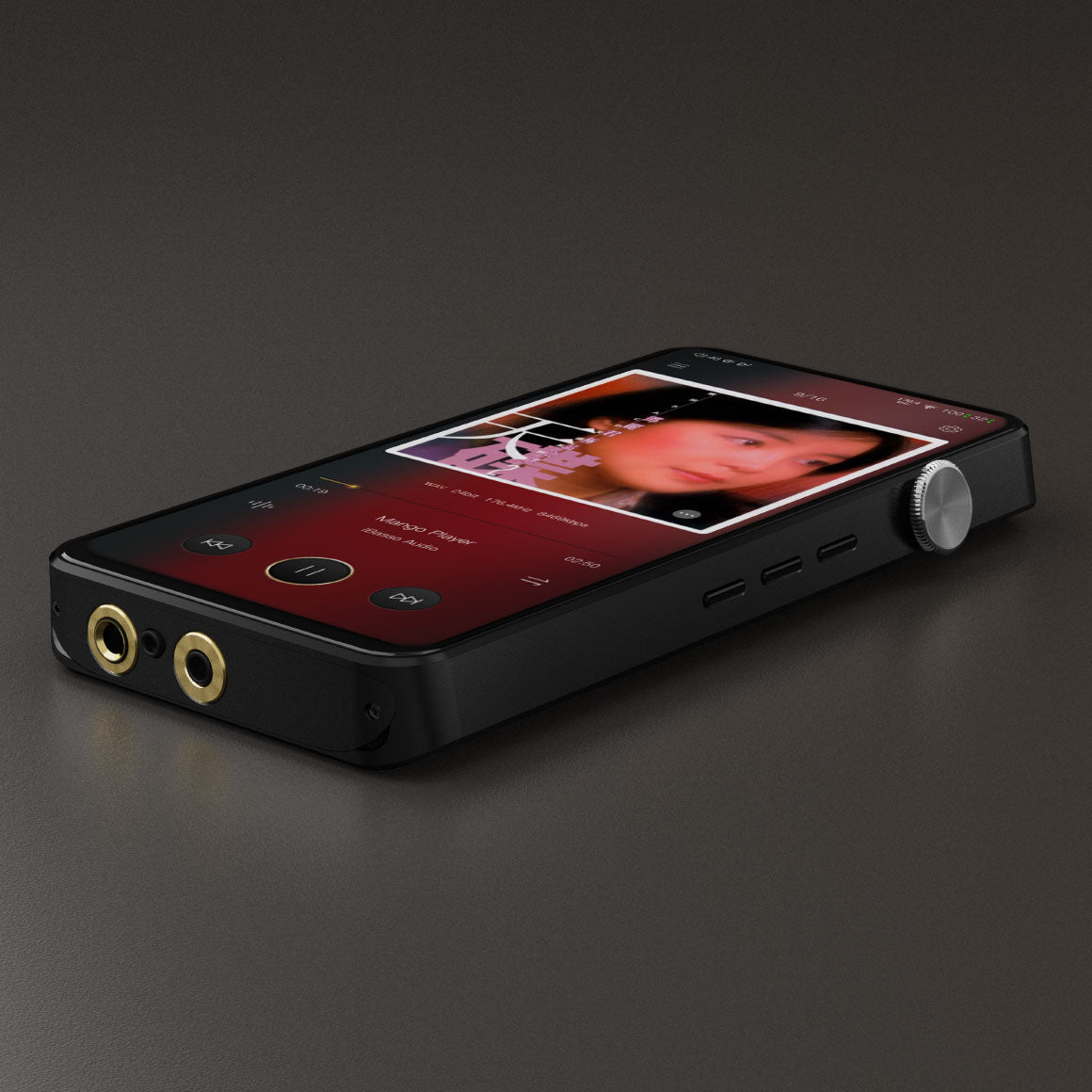

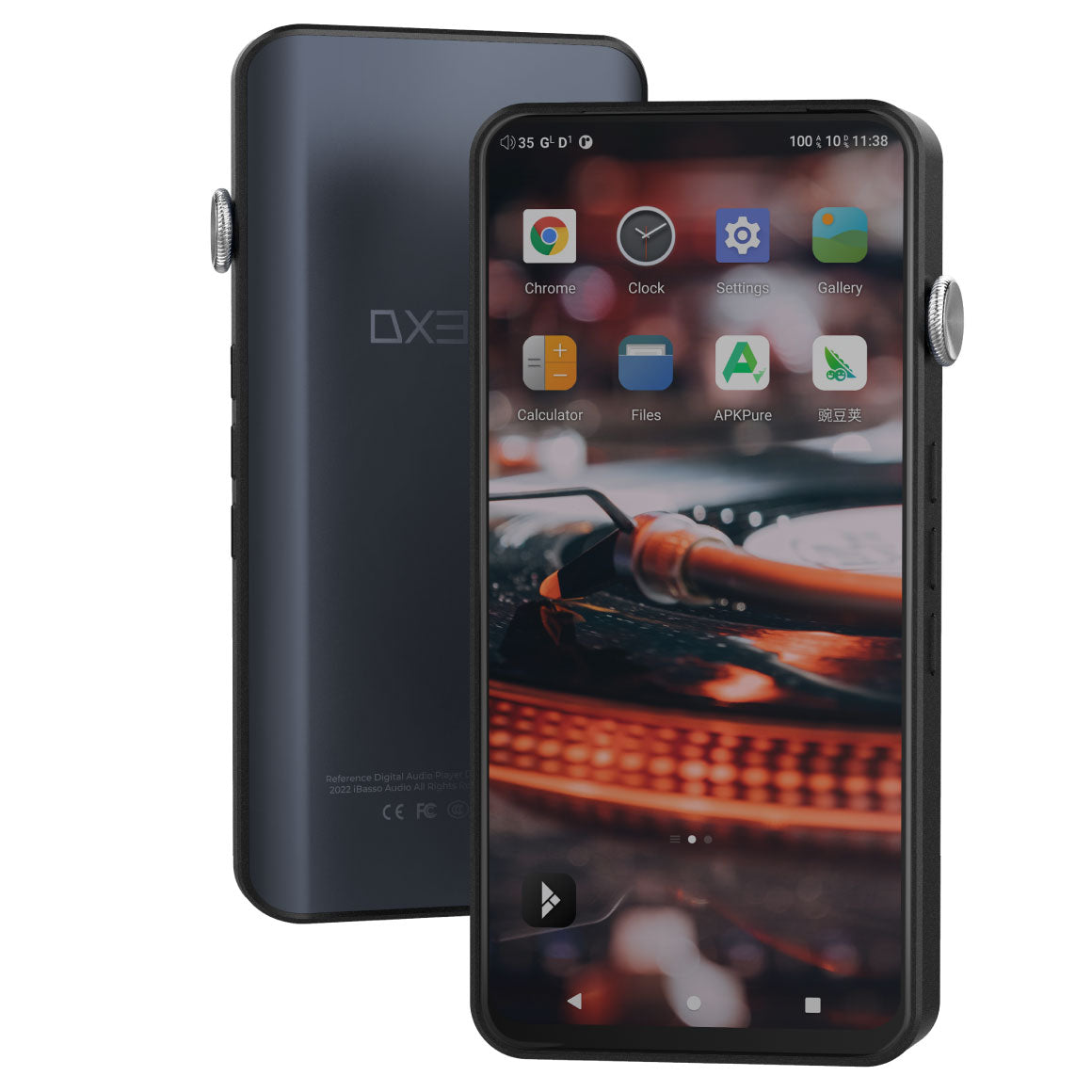

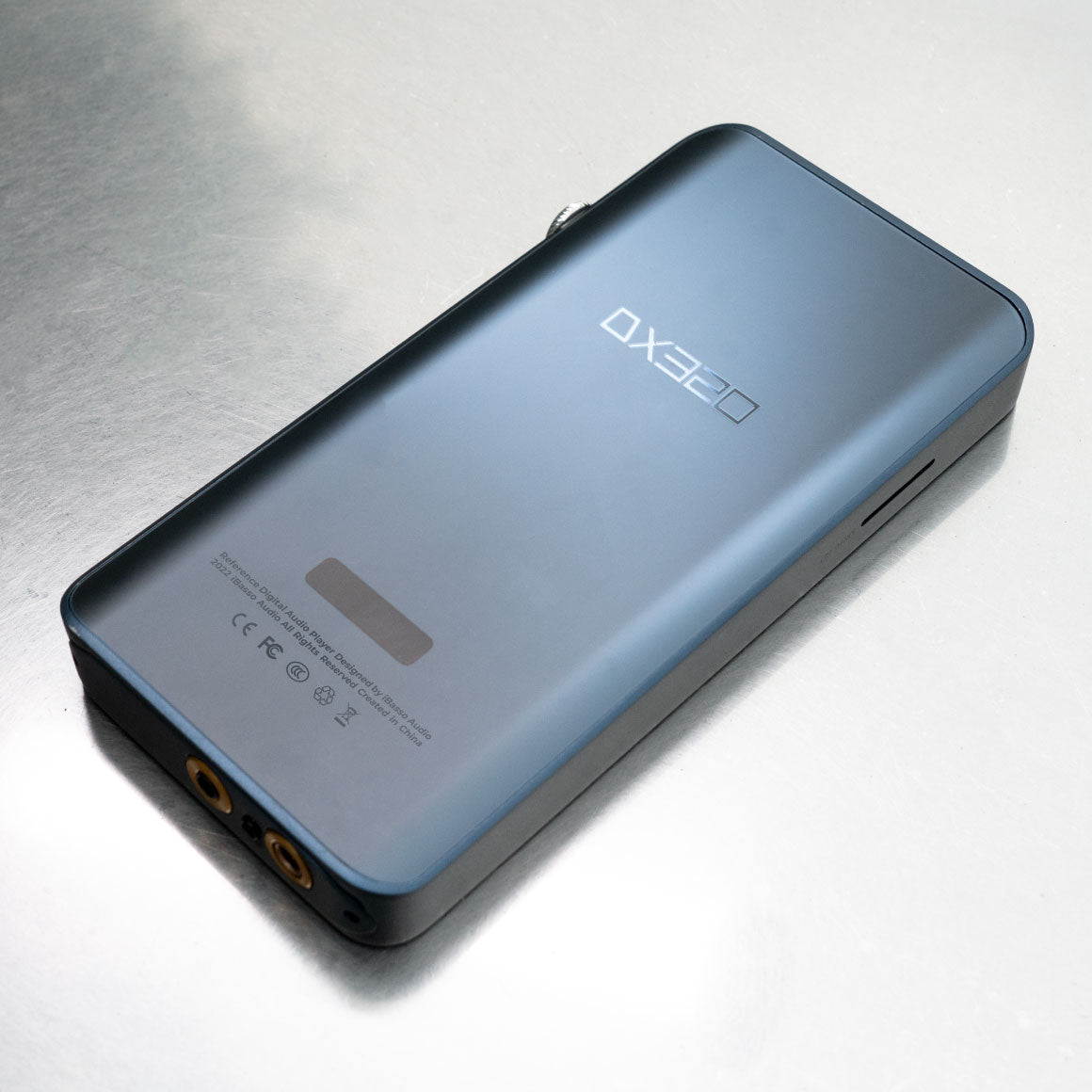

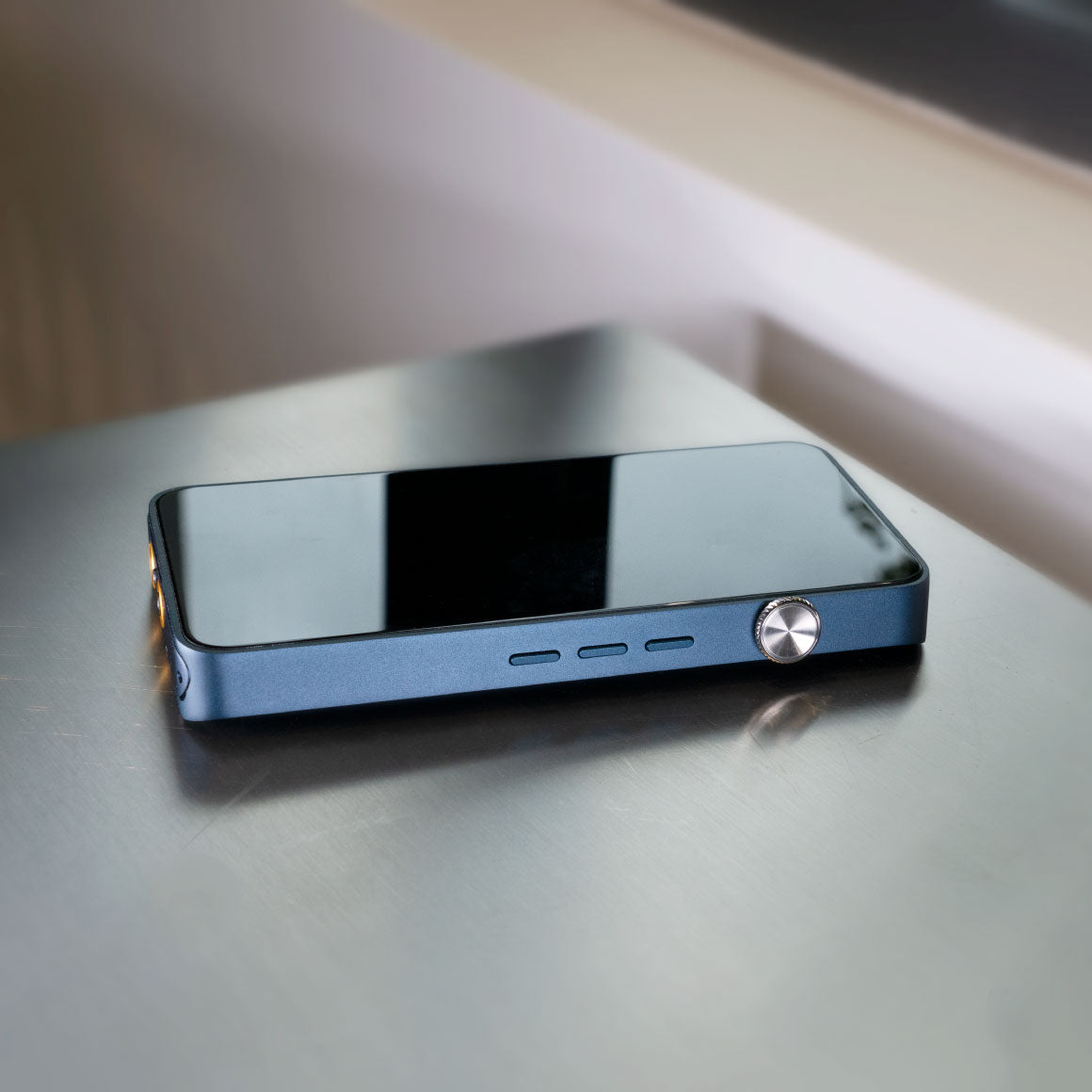

iBasso - DX320
Flagship Digital Audio Player (DAP)GET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
₹ 13,560 per month with Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 37,500
₹ 37,500
₹ 0
6 Months
(Low Cost EMI)
₹ 37,500
₹ 19,575
₹ 5,025
9 Months
(Low Cost EMI)
₹ 37,500
₹ 13,560
₹ 9,750
₹ 50,000 per month with Bajaj Finserv
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 50,000
₹ 0
₹ 50,000 per month with Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 50,000
₹ 0
EMI Options through Other Credit Cards
American Express
3
14%
₹ 51,171
₹ 3,514
6
14%
₹ 26,031
₹ 6,184
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
18
14%
₹ 9,287
₹ 17,171
24
14%
₹ 7,202
₹ 22,846
Axis Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
Bank of Baroda
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
13%
₹ 17,582
₹ 8,242
12
13%
₹ 13,398
₹ 10,771
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
Citi Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
15%
₹ 17,725
₹ 9,530
12
15%
₹ 13,539
₹ 12,465
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
HDFC Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
15%
₹ 17,725
₹ 9,530
12
15%
₹ 13,539
₹ 12,465
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
HSBC Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
13.50%
₹ 17,618
₹ 8,563
12
13.50%
₹ 13,433
₹ 11,194
18
13.50%
₹ 9,252
₹ 16,539
ICICI Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
13.99%
₹ 17,653
₹ 8,879
12
13.99%
₹ 13,467
₹ 11,608
18
14.99%
₹ 9,357
₹ 18,426
24
14.99%
₹ 7,272
₹ 24,535
INDUSIND Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
13%
₹ 17,582
₹ 8,242
12
12%
₹ 13,327
₹ 9,928
18
12%
₹ 9,147
₹ 14,651
24
12%
₹ 7,061
₹ 19,464
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
RBL Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
15%
₹ 17,725
₹ 9,530
12
15%
₹ 13,539
₹ 12,465
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
SBI Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
Standard Chartered Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
YES Bank
3
No Cost EMI
₹ 50,000
₹ 0
6
No Cost EMI
₹ 25,000
₹ 0
9
14%
₹ 17,654
₹ 8,885
12
14%
₹ 13,468
₹ 11,617
18
15%
₹ 9,358
₹ 18,439
24
15%
₹ 7,273
₹ 24,552
Payment Offers
Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 37,500
₹ 37,500
₹ 0
6 Months
(Low Cost EMI)
₹ 37,500
₹ 19,575
₹ 5,025
9 Months
(Low Cost EMI)
₹ 37,500
₹ 13,560
₹ 9,750
Axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 50,000
₹ 0
6 Months
No Cost EMI
₹ 25,000
₹ 0
Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 50,000
₹ 0
MobiKwik
Cashback Offer
- Select Cashfree at Checkout to transact through Mobikwik
- Get Additional Cashback upto Rs. 500/- on transaction via MobiKwik wallet
- Use Code :- MBK500 on MobiKwik Payment page to avail the additional cashback.
- Transaction to be done through MobiKwik wallet only
- Offer can be availed on minimum transaction of Rs. 1999/-
- Offer can be availed once per user during the campaign
- Offer valid till 30th September '23
- T&C Applied
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
Best Suited for Portable Use
Use Wirelessly with Bluetooth
With headphone jacks now becoming a relic of the past, these headphones and devices will connect to your phone wirelessly, rather than a cable. Bluetooth connectivity with devices offers wireless freedom and fuss-free usability with top-quality sound. The freedom to use these headphones and devices with Bluetooth make talking and listening to music on the go easy. Headphones and devices with Bluetooth connectivity are designed for all-day wear, making them ideal for frequent users both inside and outside a work environment.
Battery Life
2.5mm & 4.4mm
Balanced Output
BD34301EKV
Dual DAC Chip
1200mW@32Ω
Power Output
128GB
Internal Memory
Battery Capacity
upto 4000mAh
Volume Controls
DESCRIPTION
DX320 REFERENCE DIGITAL AUDIO PLAYER SUCCESSOR TO THE WIDELY POPULAR FLAGSHIP IBASSO DX300
iBasso is widely known for producing reference level DAPs that have been benchmarked in the audio industry. The design and aesthetics are a tribute to the engineers at iBasso that bring us products that go through rigorous research and development before being released to consumers. The iBasso DX300 was a game-changer. No previous DAP combined the smooth, fast operation and comprehensive app compatibility you would expect from a modern smartphone with audiophile capabilities like a high-end DAC, FPGA Master, and swappable amp cards. With an all-new DAC and speedier operation on the latest version of Android, DX320 builds on the lineage of DX300. iBasso DX320 Player Debuts as the company's new Reference-Grade Flagship Digital Audio Player successor to the wildly popular flagship iBasso dx300. The new flagship DX320 is a product built on the exceptional performance of previous generations and the result of the relentless pursuit of technological innovation, with more than 10 years of tuning and design experience!
NOTE: DX320 firmware, V2.01 June 7th, 2022, 2022 you can download it from here.
FEATURES THE LATEST DUAL BD34301EKV DAC CHIPS AND 14NM 8-CORE QUALCOMM SNAPDRAGON 660 CHIP WITH MQA SUPPORT
The DX320 features a BD34301EKV DAC chip, which is part of ROHM's high-grade MUS-IC™ series, which represents the pinnacle of audio ICs, prioritises spatial reverberation, 'quietness', and 'dynamic range', all of which are crucial for reproducing all types of music. Original sound quality design technology allows for the successful replication of the desired natural sound reproduction. At the same time, the exceptional performance expected by high-quality audio equipment is provided by a class-leading low noise and distortion (130dB SN ratio, -115dB THD+N). iBasso painstakingly designed circuits and implemented this DAC on the DX320 to bring out all of the BD34301EKV's best features. The Qualcomm Snapdragon 660 processor powers the DX320. The operation in the field of digital music players is remarkable, thanks to the powerful performance of this 14-nanometer 8-core CPU! There is enough capacity for a consistent and fast response with 6GB RAM, and the 128GB of inbuilt storage space and an external Micro SD card slot makes it easy to install more apps and store lossless files like MQA, APE, FLAC, WAV, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, and DST. The iBasso - DX320 is as smooth as some of the latest smartphones available on the market, making the user interface lively and fast. MQA technology is built into the DX320, allowing you to replay and stream MQA audio files. MQA 16X (Master Quality Authenticated) captures 100% of the original studio performance and folds the file to make it small enough to stream.

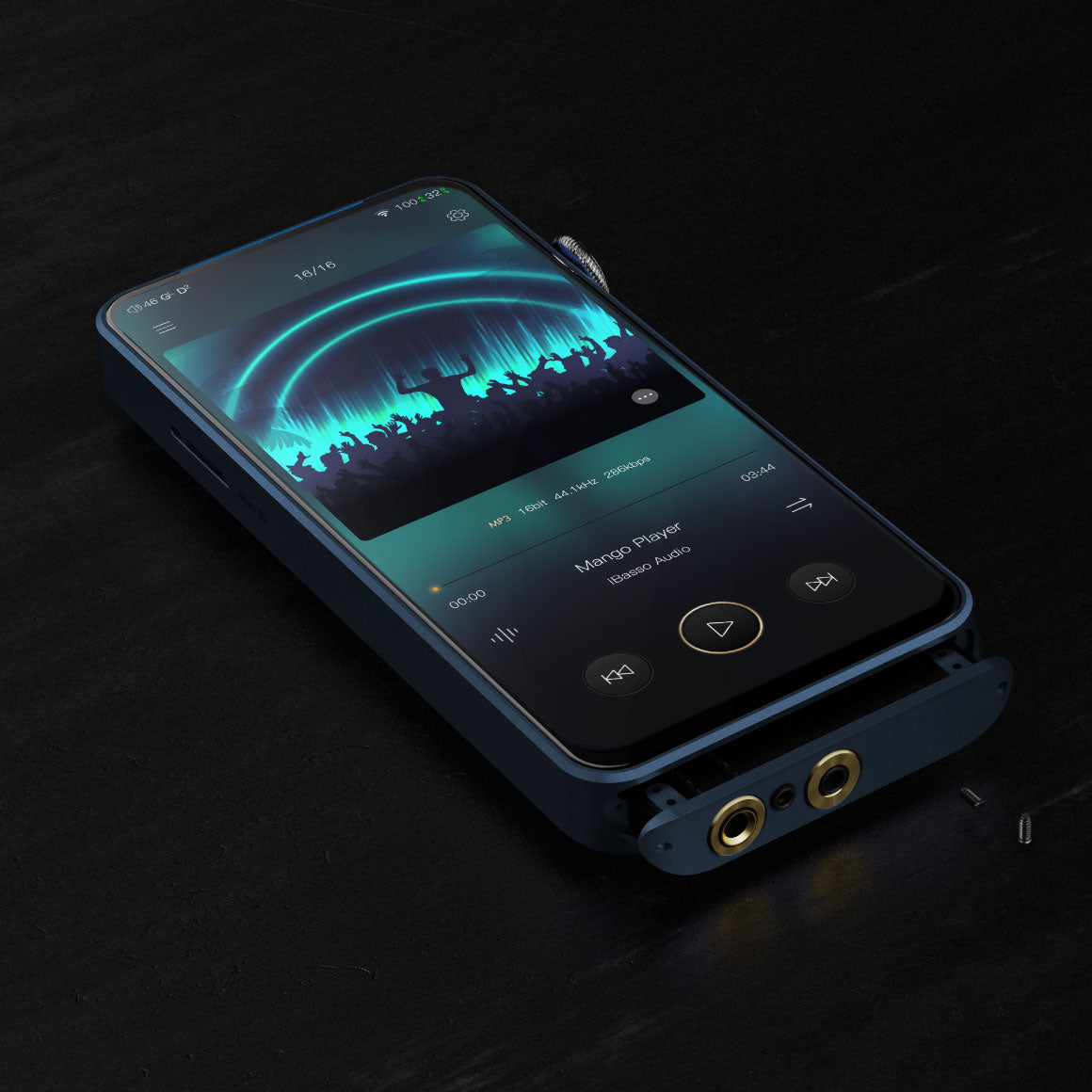

MODULAR DESIGN WITH REPLACEABLE AMP CARDS & DIGITAL POWER SUPPLIES WITH PATENTED DUAL BATTERY POWER SUPPLY STRUCTURE
The power system is one of the most crucial components of a player, as it determines the sound quality. The transient power supply is critical for SoC (System On Chip), DAC, amplifiers, and other components. When a single battery powers the entire system, the digital and analogue components may be subjected to high current demands, causing distortion resulting in a loss of sound quality. The DX320 employs a patented dual battery system, with separate batteries powering the AMP and digital sections. The independent battery delivers enough power to assure the AMP section's stability, as well as isolating digital section interference for improved overall sound quality. This design ensures that the analogue component of the player receives exceptionally clean DC, allowing the AMP section to reach its full potential. The AMP Card Design is replaceable, allowing additional diversity, individuality, and pleasure in your music. There are currently discrete AMP11 Mk2 and super-class AMP cards available. Nutube AMP13, as well as a discrete balanced AMP card AMP12, will be listed soon. You don't need to change the player; replace the amp card, and you may pick between a sharp and crisp transistor AMP or a vivid tube sound quality. When using the AMP12 with the DX320, it's best to go with a medium or low gain setting as the AMP12 has a noise floor at high gain due to circuit design compatibility.
EXCEPTIONAL SOUND DELIVERED WITH DISCRETE AMP CARD AND PREMIUM AI FOIL AUDIO CAPACITOR COUPLED WITH A PROFESSIONAL-GRADE PARAMETRIC EQ
The default AMP card AMP11 MK2s is based on AMP8's discrete circuit and is equipped with 3.5mm single-ended, 2.5mm, and 4.4mm balanced output ports. All ports, however, can be set to line outputs. A +/-8V power supply provides sufficient and stable energy for the AMP section. The maximum output current of the transistor reaches 2A, which allows the AMP11 MK2s to drive IEMs and headphones that require high current with ease. The maximum voltage output of iBasso DX320 achieves 7.1Vrms, and thanks to the independent battery power supply, the output power of 32 Ohm load is as high as 1200mW! The AMP11 MK2s were tuned with electrolytic and film capacitors, including the new unique iBasso Premium AI foil audio capacitor, to provide the best match with the iBasso DX320. You'll be surprised to learn that iBasso engineers created an APK just for tweaking your audio with a graphic EQ and professional parametric EQ. You may tweak and find your trademark sound with these customization options at your fingertips. The Mango player APK, which was built in-house, combines the EQ algorithm that iBasso has accumulated over the years.
ENJOY CAREFREE WIRELESS EXPERIENCE WITH BLUETOOTH 5.0 + 5G WIFI 2X2 MIMO AND FPGA-MASTER COUPLED WITH ACCUSILICON FEMTOSECOND OSCILLATORS DELIVERING JITTER-FREE AUDIO
With the introduction of wireless technology, the world has gone surreal for streaming music without having to deal with the annoyance of wires. The engineers created the DX320 with Bluetooth and WiFi capabilities so that consumers can stream music wirelessly. Thanks to an upgraded internal antenna, the DX320 provides outstanding coverage. The 5G WiFi features a 2x2 MIMO WiFi antenna architecture with two input and two output channels, allowing faster data transmission. The DX320 has Bluetooth 5.0 capability, as well as an improved antenna that allows for longer transmission distances and stronger signals. The engineers at iBasso used and developed their FPGA-Master technology in-house for the DX320. As the audio system controller, the FPGA-Master demands audio data directly from the SoC (System On Chip)and plays a critical role in signal reproduction and integrity. It uses two Accusilicon femtosecond oscillators to synchronise and generate all audio clocks at the same time, resulting in a fully synchronised single clock source. The FPGA and oscillators help minimise jitter to a low degree, resulting in a digital audio source that is exceptionally clean and clear. Audio processing on Android does not have a high priority in the system. The incorporation of FPGA-Master technology elevates audio scheduling to the system's highest priority processing sequence, resulting in a DX320 digital audio system that is stable and interference-free.
DELIVERING 10 HOURS OF PLAYTIME WITH FAST CHARGING CAPABILITIES AND EMBEDDED WITH 6.5 INCH SCREEN
What's the most important aspect of portable digital audio players? The way they sound yes definitely, but you need enough battery power for an uninterrupted listening experience. This is what the engineers at iBasso paid attention to in engineering DX320 to accommodate a 3.8V 2000mAh Li-Polymer battery for the digital section and a 3.8V 2000mAh Li-Polymer battery for the AMP card section delivering up to 10 hours of playtime. However, the play time varies with different resolutions, volume used and headphone/IEM loads. The DX320 supports QC3.0, and PD3.0 quick charge protocols and fully charges within 2.5 hours. How about you owning a DAP that has a high-resolution screen with touch controls? You have nowhere to look for as the iBasso DX320 features a 6.5-inch full-screen display with a thin bezel and with In-Call capacitive touch panel. The screen resolution is 2340*1080 pixels, with superior colour reproduction in digital audio players. On the top of the screen, there's also an indicator light that reveals the DX320's functioning status at a glimpse.
EQUIPPED WITH A USB SOUND CARD, COAXIAL OUTPUTS AND A HIGH-SPEED USB-C CONNECTOR
For unrivalled connectivity, the iBasso DX320 has a large number of inputs and outputs. It has a USB sound card and works with Windows PCs, Mac, smartphones, tablets, and other devices. Over the coaxial output, DX320 supports PCM 384kHz and DoP DSD128. USB-C 3.1 high-speed transmission compared to the USB2.0 standard has the theoretical transmission speed increased by 10 times over USB2.0. Output ports consist of 4.4mm/2.5mm Balanced Phone/Line Out, 3.5mm Single Ended Phone/Line Out, 3.5mm Coaxial Output, and USB OTG output. Whether the outputs function as a headphone or line out is selected through the system menu.
OPEN ANDROID 11 AND A CLOSED MANGO OS LINUX-BASED OS DESIGNED FOR AUDIO PLAYBACK
The DX320 runs on the latest Android 11 operating system. The DX320 is in the vanguard of HiFi players due to its rapid system response and smoothness. You may install almost any software and watch online streaming for free. The DX320, like earlier iBasso players, bypasses the SRC at the system level, so you can enjoy the system-level "Non-SRC" functionality whether you're using the built-in Mango player or a third-party streaming APK. At the same time, the DX320 incorporates the Mango OS, a Linux-based system designed specifically for pure music playing. The Mango system's fluidity is comparable to that of Android because of Qualcomm 660's excellent GPU acceleration. This Mango OS has amassed a large number of optimization findings for music decoding and driver algorithms. To avoid EMI interference, Mango OS also disables Bluetooth and WiFi. It has also reduced CPU and RAM use to maintain system purity and improve sound quality.
IBASSO DX320 IS ELEGANTLY BUILT AND BUNDLED WITH A WIDE ARRAY OF ACCESSORIES

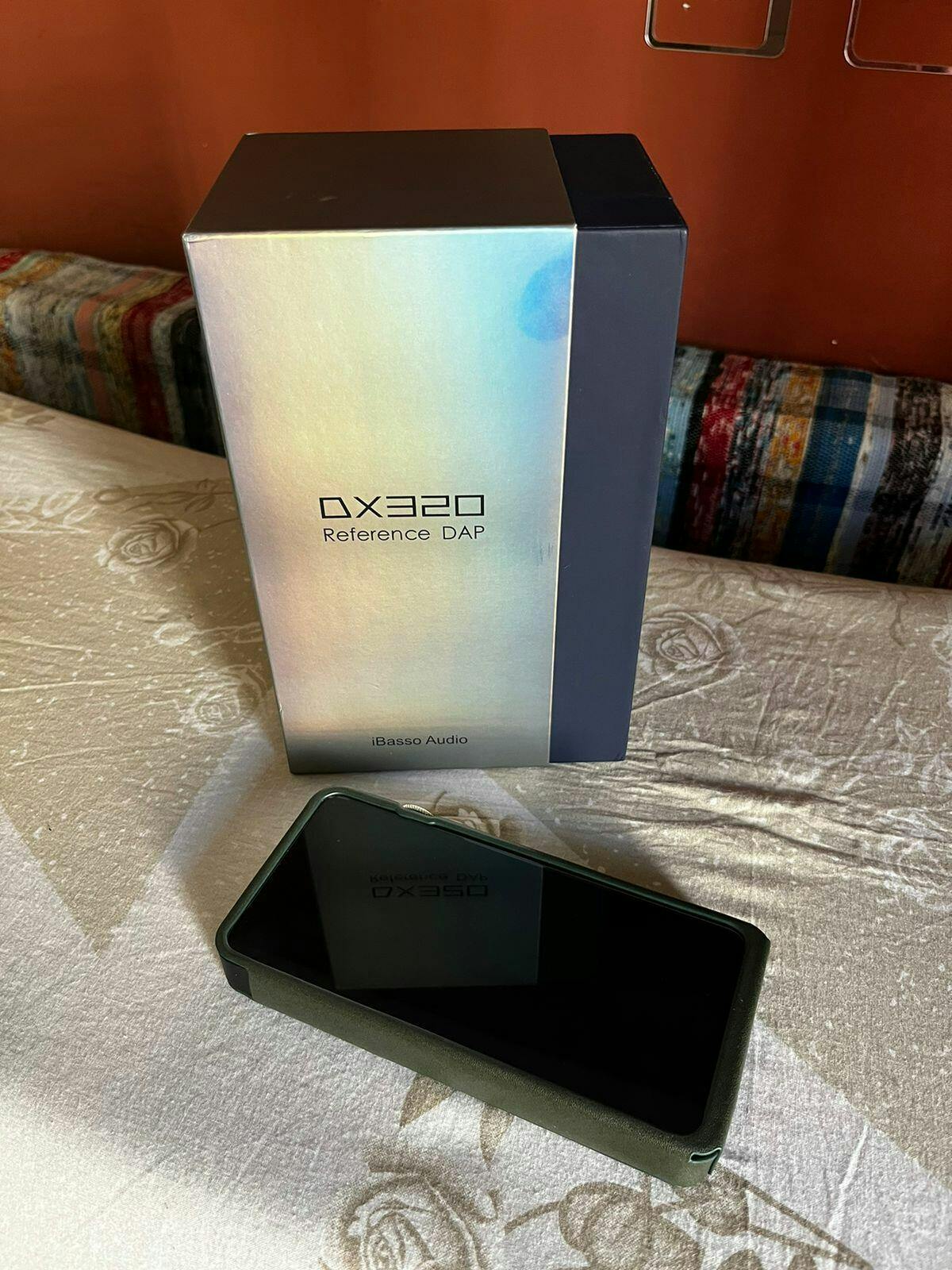

The DX320 is packaged in a large silver and blue box. The DX320 is front and centre in all of its glory as you open it up. It has the same form factor and builds a platform as the DX300, meaning it's around the same height and width. Forward, backward, play/pause buttons, and a silver-coloured volume wheel serve as hardware controls. With so many things to consider, the iBasso DX320 comes with a variety of accessories, including a USB-C Cable, Coaxial Cable, Burn-in Cable, Leather Case, and Screen Protector. You will have no problems operating the DX320 with the cables nearby.
SPECS
| MAXIMUM OUTPUT LEVEL | 7.1Vrms |
| OUTPUT POWER | 1200mW@32ohm, 168mW@300ohm |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 125dB |
| DYNAMIC RANGE | 125dB |
| THD+N | -112dB (no Load, 2.8Vrms)
-110dB (300R Load) -103dB (32R Load) |
| CROSSTALK | 120dB |
| OUTPUT IMPEDANCE | 0.38ohm |
| MAXIMUM OUTPUT LEVEL | 3.5Vrms |
| OUTPUT POWER | 380mW@32ohm, 40mW@300ohm |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 122dB |
| DYNAMIC RANGE | 122dB |
| THD+N | -110dB (no Load, 2Vrms)， -110dB (300R Load) -99dB (32R Load) |
| CROSSTALK | -114dB |
| OUTPUT IMPEDANCE | 0.34ohm |
| MAXIMUM OUTPUT LEVEL | 7.1Vrms |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 125dB |
| DYNAMIC RANGE | 125dB |
| THD+N | -110dB (no Load, 2.8Vrms) |
| CROSSTALK | -120dB |
| MAXIMUM OUTPUT LEVEL | 3.5Vrms |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 122dB |
| DYNAMIC RANGE | 122dB |
| THD+N | -108dB (no Load, 2Vrms) |
| CROSSTALK | -110dB |
| AVERAGE PLAY TIME | 10hours
(The play time varies with different resolutions, volume used and headphone/IEM loads.) |
| MODEL | DX320 |
| SCREEN | 6.5" IPS full screen (2340x1080), with In-Cell capacitive touch panel |
| AUDIO FORMAT | MQA, APE, FLAC, WAV, WMA, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, and DST |
| USB C | USB 3.1 |
| OUTPUT PORT | 4.4 mm/2.5mm Balanced Phone out (Line out)
3.5mm Single Ended Phone out (Line out) 3.5 coaxial output/ USB OTG output |
| WIFI | 802.11b/g/n/ac (2.4Ghz/5Ghz) 2x2 MIMO |
| BLUETOOTH | V5.0 |
| RAM + ROM | 6G LPDDR4X, 128G ROM |
| BATTERY | 3.8V 4000mAh Li-Polymer battery for the digital section and 3.8V 2000mAh Li-polymer battery for the AMP card section. |
| CHARGING TIME | 2.5 hours |
| AVERAGE PLAY TIME | 10 hours (The play time varies with different resolutions, volume used and headphone/IEM loads.) |
| SIZE | 162mm*77mm*17mm |
| WEIGHT | 310g |
| BOX CONTENTS | 1. iBasso DX320 Player |
| 2. Leather Case | |
| 3. Coaxial Cable | |
| 4. Balanced Burn-in Cable | |
| 5. USB-C cable | |
| 6. Screen Protector | |
| 7. Quick Start Guide | |
| 8. Warranty Card |
| GENERIC NAME | Digital Audio Player |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
FAQs
What is the warranty period? How do I claim warranty?
The warranty period on all iBasso products is 1 year. Read more information
Does the iBasso DX320 support MQA?
Yes, the iBasso DX320 does support MQA. Download master quality files and make most of them.
What is the Bluetooth version on the iBasso DX320?
The iBasso DX320 comes with Bluetooth version 5.0
What is the battery life of the iBasso DX320?
The iBasso DX320 delivers up to 10 hours of playtime.
How much storage does iBasso DX320 offer?
The iBasso DX320 comes with 6GB RAM, and the 128GB of inbuilt storage space and an external Micro SD card slot makes it easy to install more apps and store lossless files.
How can you connect to Bluetooth enabled devices?
1. On the Android desktop, swipe down from the top of the screen to display the notification bar.
2. Press the Bluetooth icon to turn on the Bluetooth function. The DX320 will automatically search for the nearby Bluetooth device. At the same time, the DX320 will be visible to the nearby devices. Choose the device that you would like to pair with. After the device has been paired, you can use the DX320 in Bluetooth mode.
How to connect to a WiFi network?
1. On the Android desktop, from the top, swipe down the screen to display the notification bar.
2. Press the Wireless local area network(WLAN) to turn on the WiFi function. The first time you enter the WLAN, you need to choose the hot spot you will be using and entering the password. From this point forward your password for this hotspot will be remembered and you simply press the WLAN icon to connect to the WiFi internet.
What does the iBasso DX320 package include?
You will be greeted with the DX320 Player as soon as you open the box. The package also includes USB-C Cable, Coaxial Cable, Burn-in Cable, Leather Case, Screens Protector, Warranty Card, and Quickstart Guide.
DX320 REFERENCE DIGITAL AUDIO PLAYER SUCCESSOR TO THE WIDELY POPULAR FLAGSHIP IBASSO DX300
iBasso is widely known for producing reference level DAPs that have been benchmarked in the audio industry. The design and aesthetics are a tribute to the engineers at iBasso that bring us products that go through rigorous research and development before being released to consumers. The iBasso DX300 was a game-changer. No previous DAP combined the smooth, fast operation and comprehensive app compatibility you would expect from a modern smartphone with audiophile capabilities like a high-end DAC, FPGA Master, and swappable amp cards. With an all-new DAC and speedier operation on the latest version of Android, DX320 builds on the lineage of DX300. iBasso DX320 Player Debuts as the company's new Reference-Grade Flagship Digital Audio Player successor to the wildly popular flagship iBasso dx300. The new flagship DX320 is a product built on the exceptional performance of previous generations and the result of the relentless pursuit of technological innovation, with more than 10 years of tuning and design experience!
NOTE: DX320 firmware, V2.01 June 7th, 2022, 2022 you can download it from here.
FEATURES THE LATEST DUAL BD34301EKV DAC CHIPS AND 14NM 8-CORE QUALCOMM SNAPDRAGON 660 CHIP WITH MQA SUPPORT
The DX320 features a BD34301EKV DAC chip, which is part of ROHM's high-grade MUS-IC™ series, which represents the pinnacle of audio ICs, prioritises spatial reverberation, 'quietness', and 'dynamic range', all of which are crucial for reproducing all types of music. Original sound quality design technology allows for the successful replication of the desired natural sound reproduction. At the same time, the exceptional performance expected by high-quality audio equipment is provided by a class-leading low noise and distortion (130dB SN ratio, -115dB THD+N). iBasso painstakingly designed circuits and implemented this DAC on the DX320 to bring out all of the BD34301EKV's best features. The Qualcomm Snapdragon 660 processor powers the DX320. The operation in the field of digital music players is remarkable, thanks to the powerful performance of this 14-nanometer 8-core CPU! There is enough capacity for a consistent and fast response with 6GB RAM, and the 128GB of inbuilt storage space and an external Micro SD card slot makes it easy to install more apps and store lossless files like MQA, APE, FLAC, WAV, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, and DST. The iBasso - DX320 is as smooth as some of the latest smartphones available on the market, making the user interface lively and fast. MQA technology is built into the DX320, allowing you to replay and stream MQA audio files. MQA 16X (Master Quality Authenticated) captures 100% of the original studio performance and folds the file to make it small enough to stream.
MODULAR DESIGN WITH REPLACEABLE AMP CARDS & DIGITAL POWER SUPPLIES WITH PATENTED DUAL BATTERY POWER SUPPLY STRUCTURE
The power system is one of the most crucial components of a player, as it determines the sound quality. The transient power supply is critical for SoC (System On Chip), DAC, amplifiers, and other components. When a single battery powers the entire system, the digital and analogue components may be subjected to high current demands, causing distortion resulting in a loss of sound quality. The DX320 employs a patented dual battery system, with separate batteries powering the AMP and digital sections. The independent battery delivers enough power to assure the AMP section's stability, as well as isolating digital section interference for improved overall sound quality. This design ensures that the analogue component of the player receives exceptionally clean DC, allowing the AMP section to reach its full potential. The AMP Card Design is replaceable, allowing additional diversity, individuality, and pleasure in your music. There are currently discrete AMP11 Mk2 and super-class AMP cards available. Nutube AMP13, as well as a discrete balanced AMP card AMP12, will be listed soon. You don't need to change the player; replace the amp card, and you may pick between a sharp and crisp transistor AMP or a vivid tube sound quality. When using the AMP12 with the DX320, it's best to go with a medium or low gain setting as the AMP12 has a noise floor at high gain due to circuit design compatibility.
EXCEPTIONAL SOUND DELIVERED WITH DISCRETE AMP CARD AND PREMIUM AI FOIL AUDIO CAPACITOR COUPLED WITH A PROFESSIONAL-GRADE PARAMETRIC EQ
The default AMP card AMP11 MK2s is based on AMP8's discrete circuit and is equipped with 3.5mm single-ended, 2.5mm, and 4.4mm balanced output ports. All ports, however, can be set to line outputs. A +/-8V power supply provides sufficient and stable energy for the AMP section. The maximum output current of the transistor reaches 2A, which allows the AMP11 MK2s to drive IEMs and headphones that require high current with ease. The maximum voltage output of iBasso DX320 achieves 7.1Vrms, and thanks to the independent battery power supply, the output power of 32 Ohm load is as high as 1200mW! The AMP11 MK2s were tuned with electrolytic and film capacitors, including the new unique iBasso Premium AI foil audio capacitor, to provide the best match with the iBasso DX320. You'll be surprised to learn that iBasso engineers created an APK just for tweaking your audio with a graphic EQ and professional parametric EQ. You may tweak and find your trademark sound with these customization options at your fingertips. The Mango player APK, which was built in-house, combines the EQ algorithm that iBasso has accumulated over the years.
ENJOY CAREFREE WIRELESS EXPERIENCE WITH BLUETOOTH 5.0 + 5G WIFI 2X2 MIMO AND FPGA-MASTER COUPLED WITH ACCUSILICON FEMTOSECOND OSCILLATORS DELIVERING JITTER-FREE AUDIO
With the introduction of wireless technology, the world has gone surreal for streaming music without having to deal with the annoyance of wires. The engineers created the DX320 with Bluetooth and WiFi capabilities so that consumers can stream music wirelessly. Thanks to an upgraded internal antenna, the DX320 provides outstanding coverage. The 5G WiFi features a 2x2 MIMO WiFi antenna architecture with two input and two output channels, allowing faster data transmission. The DX320 has Bluetooth 5.0 capability, as well as an improved antenna that allows for longer transmission distances and stronger signals. The engineers at iBasso used and developed their FPGA-Master technology in-house for the DX320. As the audio system controller, the FPGA-Master demands audio data directly from the SoC (System On Chip)and plays a critical role in signal reproduction and integrity. It uses two Accusilicon femtosecond oscillators to synchronise and generate all audio clocks at the same time, resulting in a fully synchronised single clock source. The FPGA and oscillators help minimise jitter to a low degree, resulting in a digital audio source that is exceptionally clean and clear. Audio processing on Android does not have a high priority in the system. The incorporation of FPGA-Master technology elevates audio scheduling to the system's highest priority processing sequence, resulting in a DX320 digital audio system that is stable and interference-free.
DELIVERING 10 HOURS OF PLAYTIME WITH FAST CHARGING CAPABILITIES AND EMBEDDED WITH 6.5 INCH SCREEN
What's the most important aspect of portable digital audio players? The way they sound yes definitely, but you need enough battery power for an uninterrupted listening experience. This is what the engineers at iBasso paid attention to in engineering DX320 to accommodate a 3.8V 2000mAh Li-Polymer battery for the digital section and a 3.8V 2000mAh Li-Polymer battery for the AMP card section delivering up to 10 hours of playtime. However, the play time varies with different resolutions, volume used and headphone/IEM loads. The DX320 supports QC3.0, and PD3.0 quick charge protocols and fully charges within 2.5 hours. How about you owning a DAP that has a high-resolution screen with touch controls? You have nowhere to look for as the iBasso DX320 features a 6.5-inch full-screen display with a thin bezel and with In-Call capacitive touch panel. The screen resolution is 2340*1080 pixels, with superior colour reproduction in digital audio players. On the top of the screen, there's also an indicator light that reveals the DX320's functioning status at a glimpse.
EQUIPPED WITH A USB SOUND CARD, COAXIAL OUTPUTS AND A HIGH-SPEED USB-C CONNECTOR

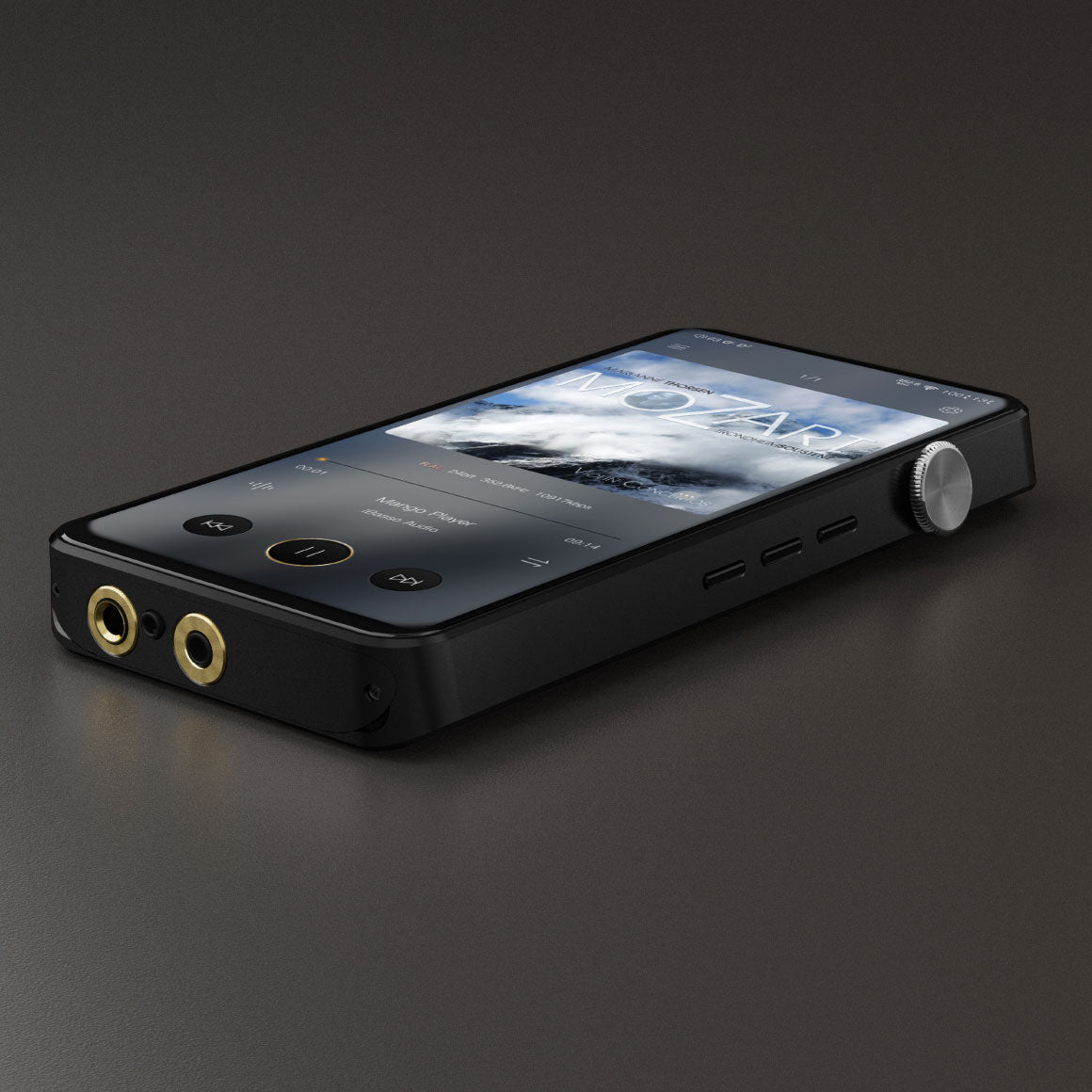

For unrivalled connectivity, the iBasso DX320 has a large number of inputs and outputs. It has a USB sound card and works with Windows PCs, Mac, smartphones, tablets, and other devices. Over the coaxial output, DX320 supports PCM 384kHz and DoP DSD128. USB-C 3.1 high-speed transmission compared to the USB2.0 standard has the theoretical transmission speed increased by 10 times over USB2.0. Output ports consist of 4.4mm/2.5mm Balanced Phone/Line Out, 3.5mm Single Ended Phone/Line Out, 3.5mm Coaxial Output, and USB OTG output. Whether the outputs function as a headphone or line out is selected through the system menu.
OPEN ANDROID 11 AND A CLOSED MANGO OS LINUX-BASED OS DESIGNED FOR AUDIO PLAYBACK
The DX320 runs on the latest Android 11 operating system. The DX320 is in the vanguard of HiFi players due to its rapid system response and smoothness. You may install almost any software and watch online streaming for free. The DX320, like earlier iBasso players, bypasses the SRC at the system level, so you can enjoy the system-level "Non-SRC" functionality whether you're using the built-in Mango player or a third-party streaming APK. At the same time, the DX320 incorporates the Mango OS, a Linux-based system designed specifically for pure music playing. The Mango system's fluidity is comparable to that of Android because of Qualcomm 660's excellent GPU acceleration. This Mango OS has amassed a large number of optimization findings for music decoding and driver algorithms. To avoid EMI interference, Mango OS also disables Bluetooth and WiFi. It has also reduced CPU and RAM use to maintain system purity and improve sound quality.
IBASSO DX320 IS ELEGANTLY BUILT AND BUNDLED WITH A WIDE ARRAY OF ACCESSORIES

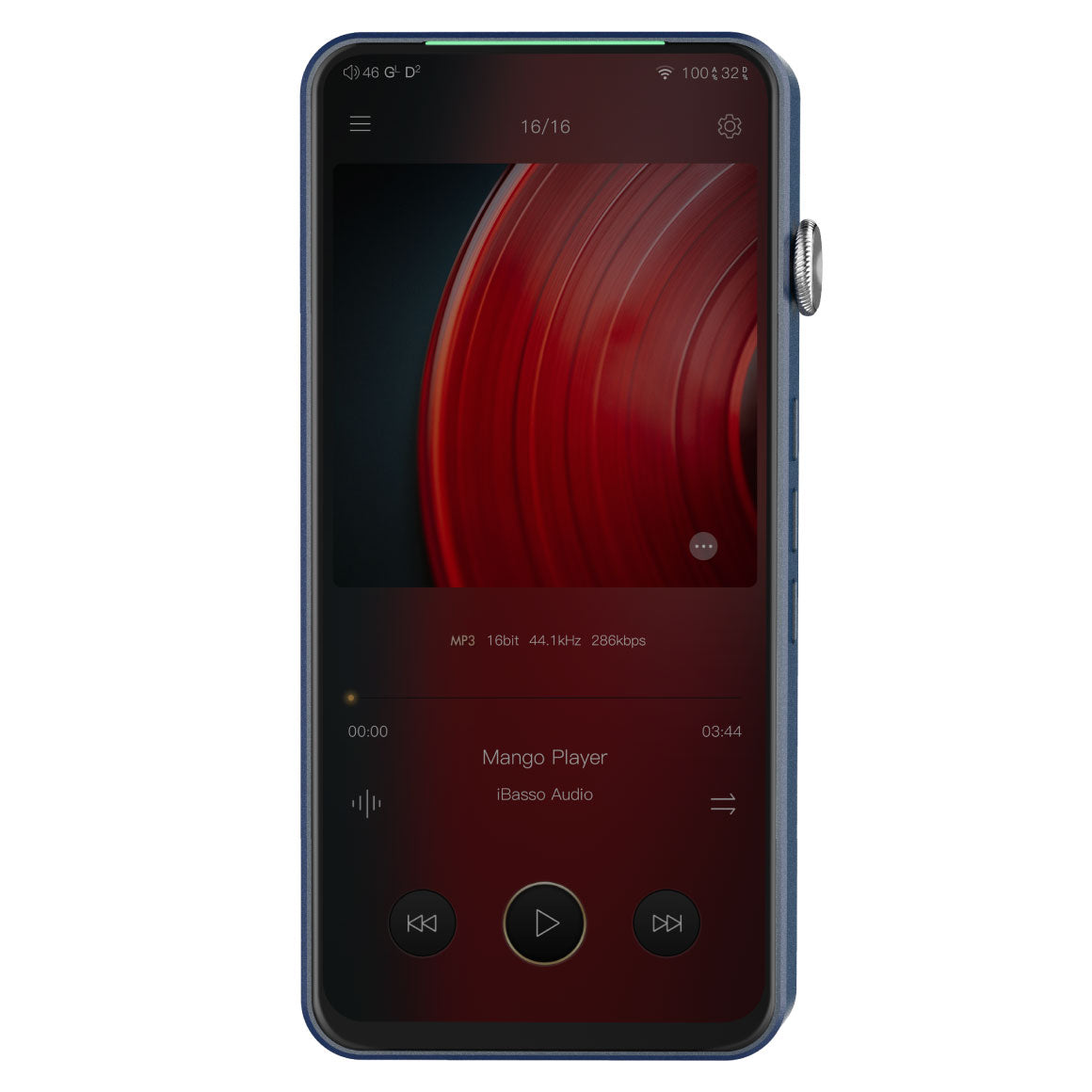

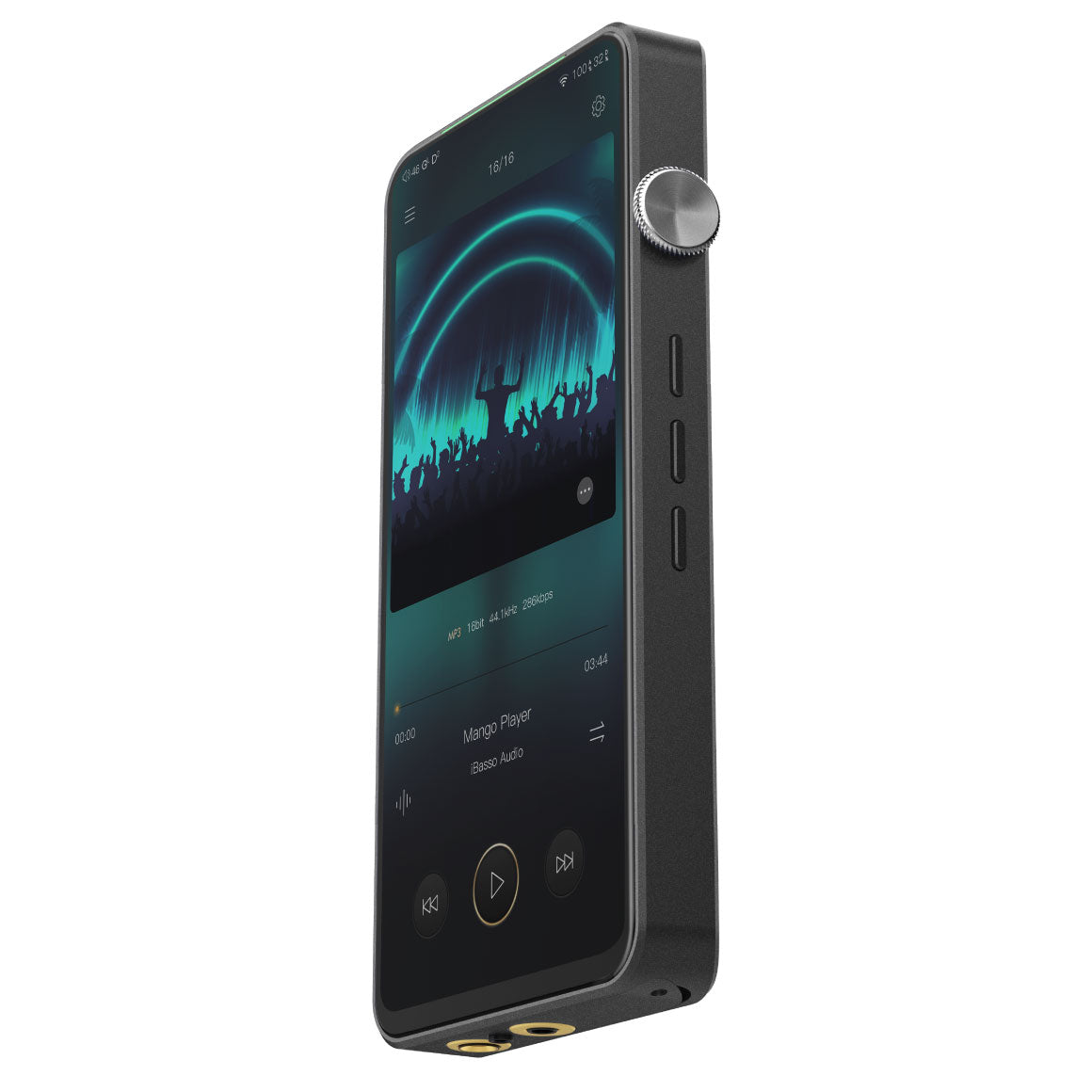

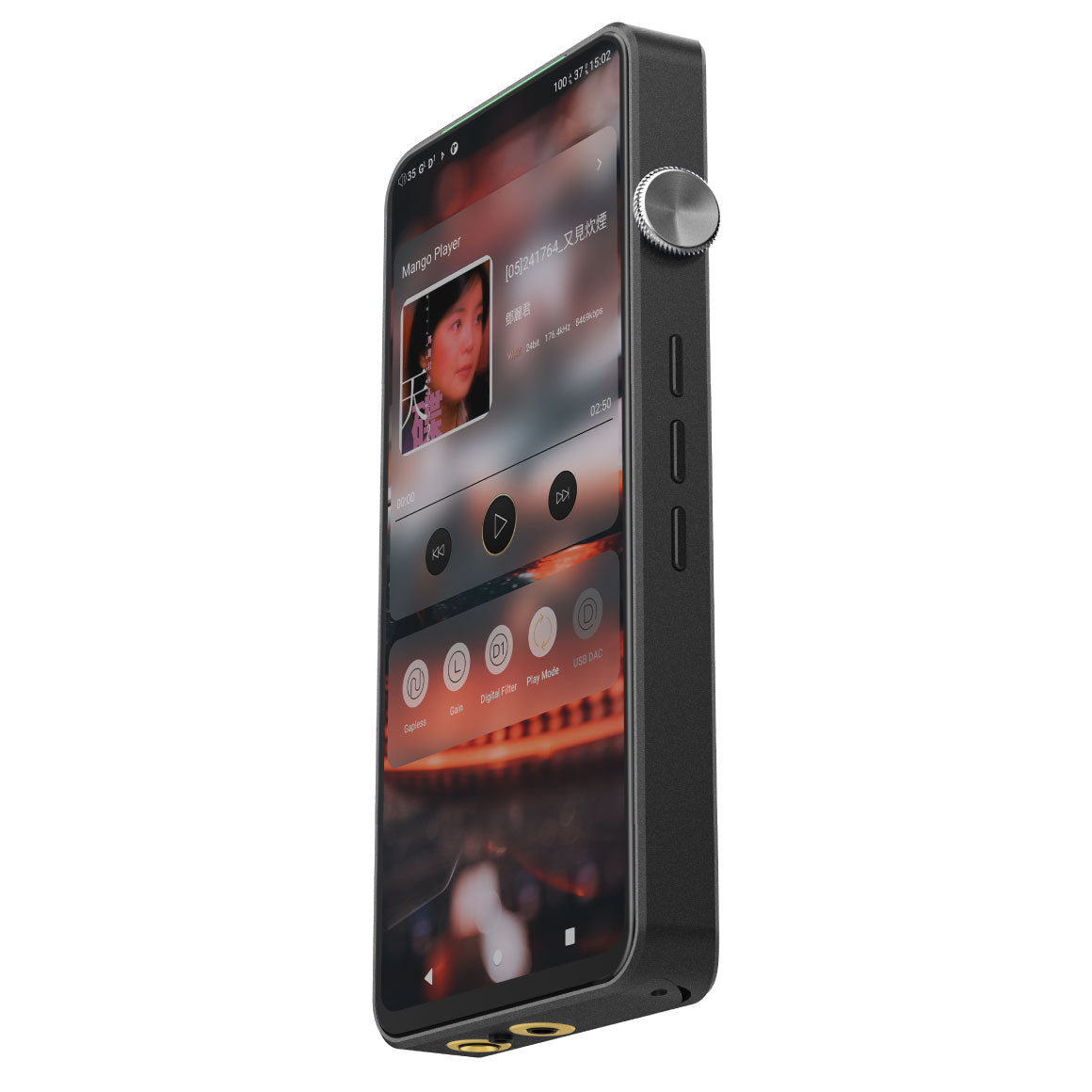

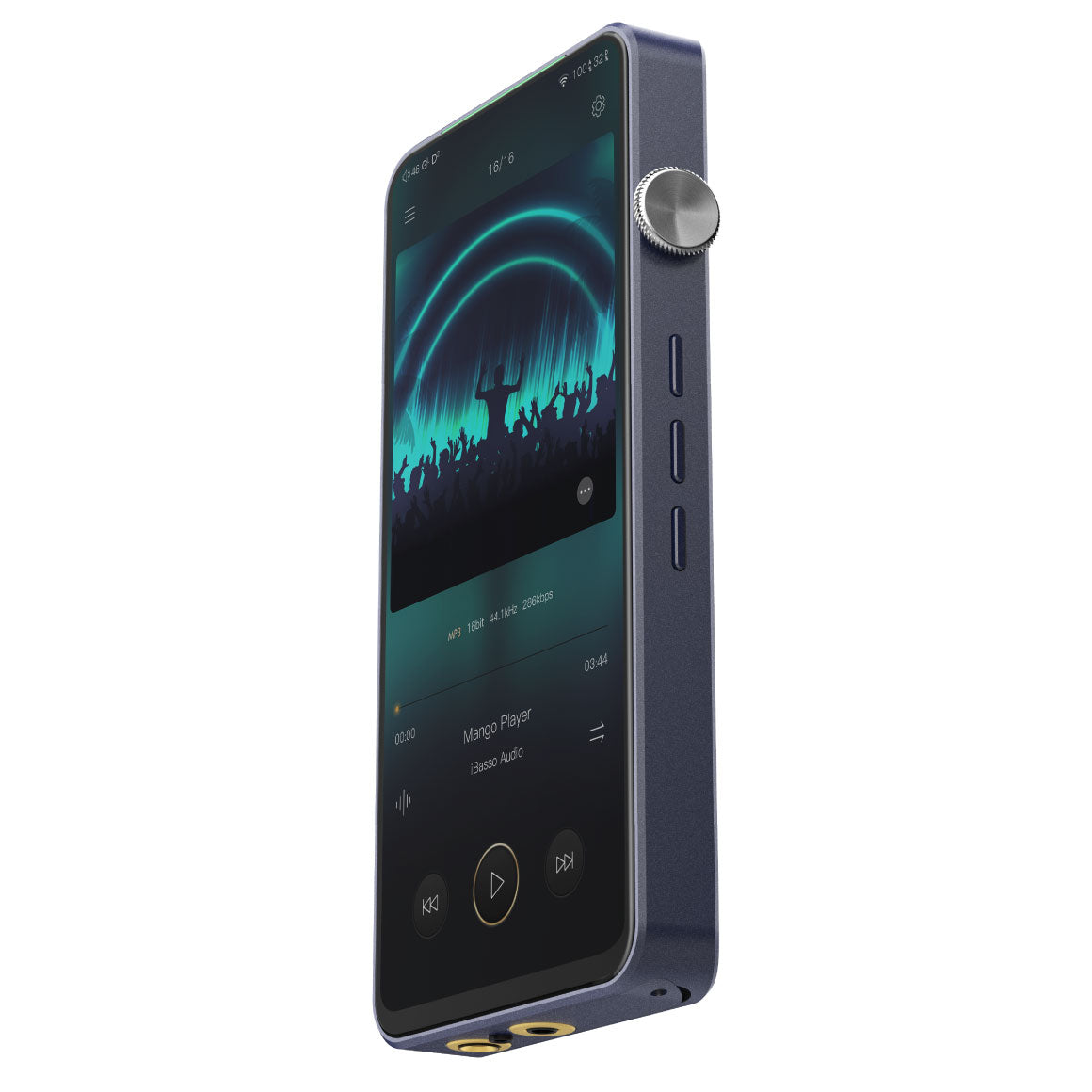

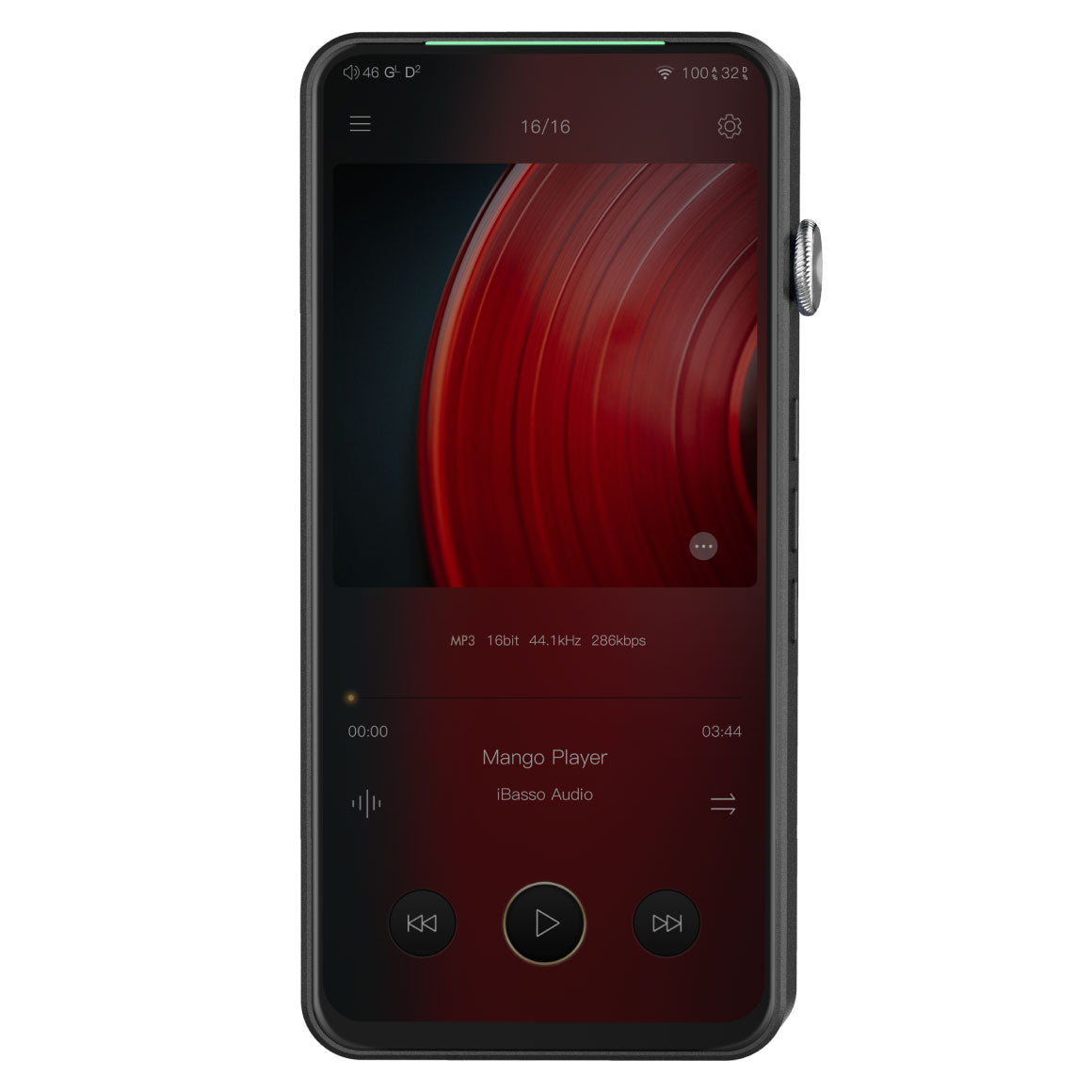

The DX320 is packaged in a large silver and blue box. The DX320 is front and centre in all of its glory as you open it up. It has the same form factor and builds a platform as the DX300, meaning it's around the same height and width. Forward, backward, play/pause buttons, and a silver-coloured volume wheel serve as hardware controls. With so many things to consider, the iBasso DX320 comes with a variety of accessories, including a USB-C Cable, Coaxial Cable, Burn-in Cable, Leather Case, and Screen Protector. You will have no problems operating the DX320 with the cables nearby.
| MAXIMUM OUTPUT LEVEL | 7.1Vrms |
| OUTPUT POWER | 1200mW@32ohm, 168mW@300ohm |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 125dB |
| DYNAMIC RANGE | 125dB |
| THD+N | -112dB (no Load, 2.8Vrms)
-110dB (300R Load) -103dB (32R Load) |
| CROSSTALK | 120dB |
| OUTPUT IMPEDANCE | 0.38ohm |
| MAXIMUM OUTPUT LEVEL | 3.5Vrms |
| OUTPUT POWER | 380mW@32ohm, 40mW@300ohm |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 122dB |
| DYNAMIC RANGE | 122dB |
| THD+N | -110dB (no Load, 2Vrms)， -110dB (300R Load) -99dB (32R Load) |
| CROSSTALK | -114dB |
| OUTPUT IMPEDANCE | 0.34ohm |
| MAXIMUM OUTPUT LEVEL | 7.1Vrms |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 125dB |
| DYNAMIC RANGE | 125dB |
| THD+N | -110dB (no Load, 2.8Vrms) |
| CROSSTALK | -120dB |
| MAXIMUM OUTPUT LEVEL | 3.5Vrms |
| FREQUENCY RESPONSE | 10Hz~40kHz +/-0.3dB |
| S/N | 122dB |
| DYNAMIC RANGE | 122dB |
| THD+N | -108dB (no Load, 2Vrms) |
| CROSSTALK | -110dB |
| AVERAGE PLAY TIME | 10hours
(The play time varies with different resolutions, volume used and headphone/IEM loads.) |
| MODEL | DX320 |
| SCREEN | 6.5" IPS full screen (2340x1080), with In-Cell capacitive touch panel |
| AUDIO FORMAT | MQA, APE, FLAC, WAV, WMA, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, and DST |
| USB C | USB 3.1 |
| OUTPUT PORT | 4.4 mm/2.5mm Balanced Phone out (Line out)
3.5mm Single Ended Phone out (Line out) 3.5 coaxial output/ USB OTG output |
| WIFI | 802.11b/g/n/ac (2.4Ghz/5Ghz) 2x2 MIMO |
| BLUETOOTH | V5.0 |
| RAM + ROM | 6G LPDDR4X, 128G ROM |
| BATTERY | 3.8V 4000mAh Li-Polymer battery for the digital section and 3.8V 2000mAh Li-polymer battery for the AMP card section. |
| CHARGING TIME | 2.5 hours |
| AVERAGE PLAY TIME | 10 hours (The play time varies with different resolutions, volume used and headphone/IEM loads.) |
| SIZE | 162mm*77mm*17mm |
| WEIGHT | 310g |
| BOX CONTENTS | 1. iBasso DX320 Player |
| 2. Leather Case | |
| 3. Coaxial Cable | |
| 4. Balanced Burn-in Cable | |
| 5. USB-C cable | |
| 6. Screen Protector | |
| 7. Quick Start Guide | |
| 8. Warranty Card |
| GENERIC NAME | Digital Audio Player |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
What is the warranty period? How do I claim warranty?
The warranty period on all iBasso products is 1 year. Read more information
Does the iBasso DX320 support MQA?
Yes, the iBasso DX320 does support MQA. Download master quality files and make most of them.
What is the Bluetooth version on the iBasso DX320?
The iBasso DX320 comes with Bluetooth version 5.0
What is the battery life of the iBasso DX320?
The iBasso DX320 delivers up to 10 hours of playtime.
How much storage does iBasso DX320 offer?
The iBasso DX320 comes with 6GB RAM, and the 128GB of inbuilt storage space and an external Micro SD card slot makes it easy to install more apps and store lossless files.
How can you connect to Bluetooth enabled devices?
1. On the Android desktop, swipe down from the top of the screen to display the notification bar.
2. Press the Bluetooth icon to turn on the Bluetooth function. The DX320 will automatically search for the nearby Bluetooth device. At the same time, the DX320 will be visible to the nearby devices. Choose the device that you would like to pair with. After the device has been paired, you can use the DX320 in Bluetooth mode.
How to connect to a WiFi network?
1. On the Android desktop, from the top, swipe down the screen to display the notification bar.
2. Press the Wireless local area network(WLAN) to turn on the WiFi function. The first time you enter the WLAN, you need to choose the hot spot you will be using and entering the password. From this point forward your password for this hotspot will be remembered and you simply press the WLAN icon to connect to the WiFi internet.
What does the iBasso DX320 package include?
You will be greeted with the DX320 Player as soon as you open the box. The package also includes USB-C Cable, Coaxial Cable, Burn-in Cable, Leather Case, Screens Protector, Warranty Card, and Quickstart Guide.
Don't sweat it, this
iBasso - DX320 comes with a 1 Year warranty
from iBasso that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about iBasso's warranty in
India.
GOLD AWARD
MAJOR HiFi
June, 2022
"By far, the DX320 gives you one of the smoothest experiences on a DAP. Everything it does is effortless, and its high-grade performance makes it so natural to use. DX320 becomes one of the top players on the market."
Read More
"If you're a serious audiophile looking to take your portable listening experience to the next level, I would highly recommend the iBasso DX320. I'm very excited to see how iBasso follows up with this one."
Read More
"We don’t usually make superlative statements about products, but if you want flagship level audiophile sound and a user experience on par with flagship smartphones, DX320 is the best there is under $2,000."
Read MoreThis product is rated 5.0 of 5.0 stars.
It has received 1 review.
Customer Reviews

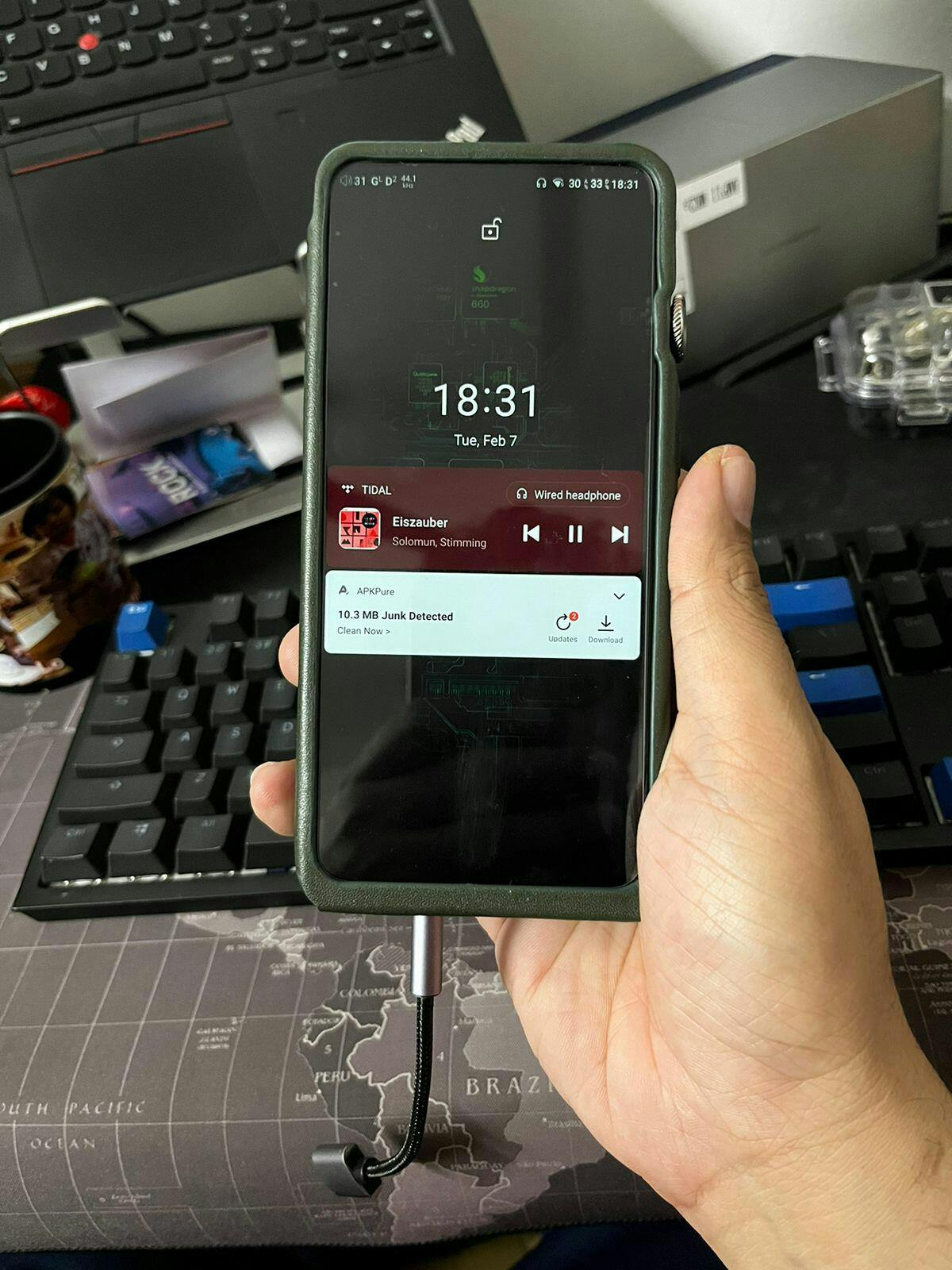

I auditioned this DAP at a friends place on my Audeze Euclid and instantly fell for the sound signature. I came back home that day and ordered it from HPZ on the 5th Feb 2023 (Sunday). On the 6th Feb 2023 (Monday) I got a call from Varun Damani from HPZ stating that a sale will be held on from the 7th Feb 2023 onwards and DX320 will be a part of that list and so we are knocking off 10k on the price. He said that he will be crediting 10k back to my account. SWEET!! So I got the sale price 2 days before the sale and this should tell you something about HPZ. Kudos!!
DAPs and Me: As I mentioned before this wasn’t a blind purchase. I auditioned it before and ordered it as soon as I reached home after the meet at a friend’s place. I am usually reluctant to buy an audio gear with a battery in it and hence I have owned only one DAP since 2016 as I didn’t really feel a need to upgrade. So, you can imagine that was not an easy decision but surprisingly I took it almost instantly.
Background: I have auditioned some heavy weights before this the DX320 like RS8, P6 Pro, N8ii and SP2KT to name a few. I mentioned these to tell you from where I am coming from. While I still think P6 Pro is the best most believably real sounding DAP, I just couldn’t justify the cost. N8ii comes very close to P6 Pro but just doesn’t carry that organic vocal presentation. DX320 with its stock AMP11 MK2 comes very close to the performance of P6 Pro at half its cost but have a far more usable UI and Android support. The advantage DX320 has over the N8ii is that the former is modular. You can swap out the amp section with something discrete like AMP12, single ended tube AMP13 or balanced tube AMP14. In N8ii you have all that in the DAP already so you end up paying more for thing you may never need.
Sound: With the stock firmware 2.03, this DAP sounds like my reference system which I use with speakers only with a little colour of overtones, enhanced reverb and the best non fatiguing highs I have ever heard (Better than N8ii for sure). This gives the sound a far bigger presentation and layering than even my reference system. Soundstage however is not as wide as N8ii or P6 Pro but has better depth and layering that the two. Music doesn’t sound like a playback but a performance in reality and a lot many times I got the feeling of my Euclids disappearing like speakers often do in a well-treated room.
Sounds great right? However, there are a few issues.
a) When I upgraded to the latest 2.05, the sound changed and became more reference like. This is probably to integrate AMP14 which is tube based. So, firmware upgrade may change the sound quite a lot.
b) The volume wheel is not the best.
c) It has 6000mh battery but it has 4000mh for Digital(Dual DACs+Processor+RAM+FPGA) and 2000mh for amp in a dual battery configuration. This is good because of isolation and now you can go crazy on amp and/or digital design (Which ibasso has by putting 2 desktop DACs in it) but it also means that one of the batteries is going to offset the relevance of the other. In my test, the digital battery lasts close to 9-9.5 hours of continuous playback in MangoOS and 6-6.5 hours of Android streaming with Tidal. While the digital battery gets depleted, the amp battery still remains strong at say 40-50% but its irrelevant since there cannot be any playback. Things gets reversed when this DAP is being used in DAC mode. I used it with my iPad and streamed Apple Music. In this scenario, the amp battery ran out faster that the digital one but the overall playback time was close to 20hours since the iPad was supplying both the battery. In short, in DAP mode, don’t expect more than 9 hours of playback.
Its performance is still far far far more worth it people, so don't get dishearten by the cons and audition this beauty if possible.
Thanks a lot for your detailed and genuine feedback, we're glad that you have such positive thoughts about the product and we'll share your thoughts with the brand as well.
